一，Semaphore原理
信号量，用来限制能同时访问共享资源的线程上限，就好像ReentrantLock只允许一个线程进去，而Semaphore最多只允许n个线程进去，常用于资源访问，服务限流(Hystrix里限流就有基于信号量方式)
1.1 简单使用
public class SemaphoreRunner {
public static void main(String[] args) {
Semaphore semaphore = new Semaphore(2);
for (int i=0;i<5;i++){
new Task(semaphore,"zyh"+i).start();
}
}
static class Task extends Thread{
Semaphore semaphore;
public Task(Semaphore semaphore,String tname){
this.semaphore = semaphore;
this.setName(tname);
}
public void run() {
try {
semaphore.acquire();
System.out.println(Thread.currentThread().getName()+":aquire():"+System.currentTimeMillis());
Thread.sleep(1000);
semaphore.release();
System.out.println(Thread.currentThread().getName()+":release():"+System.currentTimeMillis());
} catch (InterruptedException e) {
e.printStackTrace();
}
}
}
}输出结果：
zyh0:aquire():1677224850140
zyh1:aquire():1677224850139
zyh1:release():1677224851140
zyh3:aquire():1677224851140
zyh2:aquire():1677224851140
zyh0:release():1677224851140
zyh2:release():1677224852141
zyh4:aquire():1677224852141
zyh3:release():1677224852141
zyh4:release():1677224853141从打印结果可以看出，一次只有两个线程执行 acquire()，只有线程进行 release() 方法后才会有别的线程执行 acquire()。
1.2 常用方法
有两个构造方法，参数permits设置最大许可数，fair表示是否公平，和ReentrantLock一样可以创建公平与非公平获取资源方式
Semaphore(int permits)
Semaphore(int permits, boolean fair)获取许可，无参的是获取1，也就是AQS的state-1，也可以state-permits，计算的结果小于0则会阻塞线程
acquire()
acquire(int permits)尝试获得许可，会直接返回获取的结果，和ReentrantLock的tryAcquire一样
tryAcquire()
tryAcquire(int permits)会尝试一段时间，如果这段时间都没有获取会返回失败
tryAcquire(long timeout, TimeUnit unit)释放许可，释放后会唤醒其他等待线程
release()
release(int permits) 还有一些其他的次要的方法比如acquireUninterruptibly(int permits)在获取许可的时候不响应线程的中断信号，比较类似或简单这里就不再赘述了。
1.3 原理解析

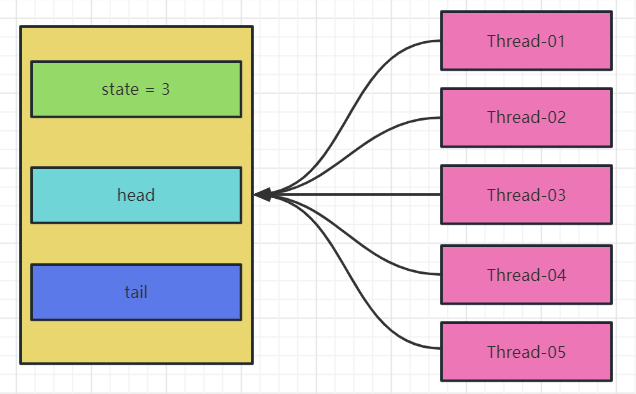

Semaphore 有点像一个停车场，permits 就好像停车位数量，当线程获得了 permits 就像是获得了停车位，然后 停车场显示空余车位减一。假设：刚开始，permits（state）为 3，这时 5 个线程来获取资源

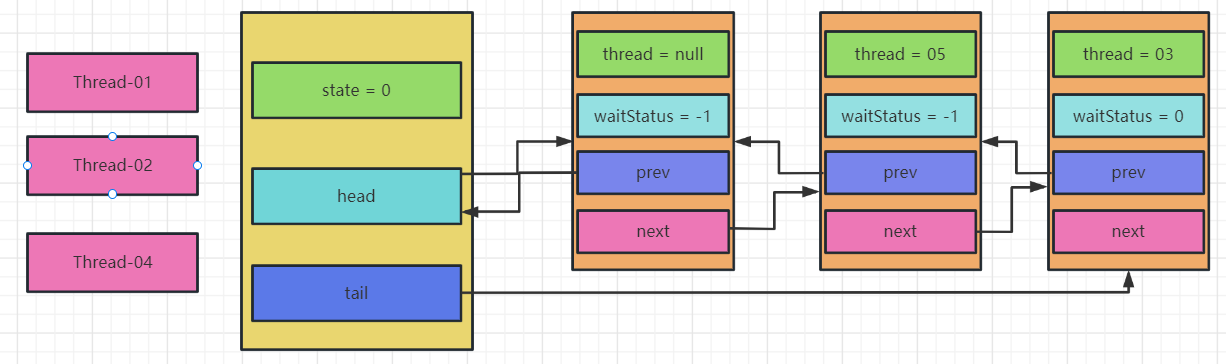

假设：其中 Thread-01，Thread-02，Thread-04 cas 竞争成功，而 Thread-05 和 Thread-03 竞争失败，进入 AQS 队列 park 阻塞

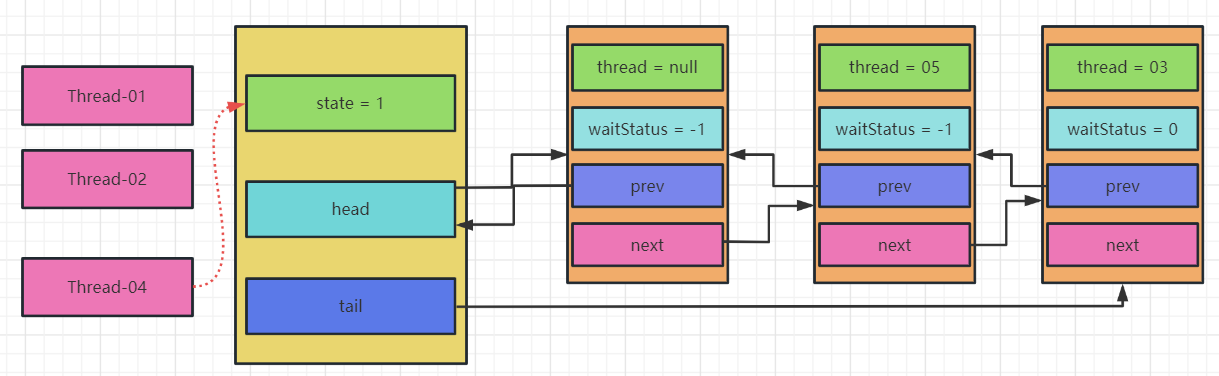

这时 Thread-04 释放了 permits， state+1,状态如下
Thread-04释放了 permits同时，会唤醒Thread-05， 假设Thread-05 在自旋时竞争成功，permits 再次设置为 0，Thread-05将自己变为 head ，断开原来的 head 节点，接着unpark 唤醒 Thread-03 节点，但由于permits 是 0，因此 Thread-03 在尝试不成功后再次进入 park 状态。
1.3.1 加锁
acquire()方法：
public void acquire() throws InterruptedException {
sync.acquireSharedInterruptibly(1);
}继续跟进acquireSharedInterruptibly(int arg)方法：
public final void acquireSharedInterruptibly(int arg)
throws InterruptedException {
if (Thread.interrupted())
throw new InterruptedException(); // 可打断
if (tryAcquireShared(arg) < 0) // 标记①，下面解析tryAcquireShared(arg)方法
doAcquireSharedInterruptibly(arg); //标记②，下面解析doAcquireSharedInterruptibly(arg)方法
}解析标记①，跟进tryAcquireShared(arg)方法的非公平实现
protected int tryAcquireShared(int acquires) {
return nonfairTryAcquireShared(acquires);
}继续跟进nonfairTryAcquireShared(acquires);方法：
final int nonfairTryAcquireShared(int acquires) {
for (;;) {
// 得到当前state的值
int available = getState();
// 当前state的值减一
int remaining = available - acquires;
// remaining < 0 时直接返回-1，加锁失败
// remaining > 0 时进行cas操作更新state值
if (remaining < 0 ||
compareAndSetState(available, remaining))
return remaining;
}
}解析标记②，跟进doAcquireSharedInterruptibly(arg)方法:
private void doAcquireSharedInterruptibly(int arg)
throws InterruptedException {
final Node node = addWaiter(Node.SHARED);// 添加的是共享节点
boolean failed = true;
try {
for (;;) {
final Node p = node.predecessor();
if (p == head) {
int r = tryAcquireShared(arg);
if (r >= 0) {
setHeadAndPropagate(node, r);// 重新设置头节点并将后面连续的共享类型的节点唤醒
p.next = null;
failed = false;
return;
}
}
if (shouldParkAfterFailedAcquire(p, node) &&
parkAndCheckInterrupt())
throw new InterruptedException();// 在parkAndCheckInterrupt方法中挂起
}
} finally {
if (failed)
cancelAcquire(node);
}
}跟进setHeadAndPropagate(node, r);方法，重新设置头节点并将后面连续的共享类型的节点唤醒
private void setHeadAndPropagate(Node node, int propagate) {
Node h = head; // 重新设置头节点
setHead(node);
if (propagate > 0 || h == null || h.waitStatus < 0 ||
(h = head) == null || h.waitStatus < 0) {
Node s = node.next;
if (s == null || s.isShared())
doReleaseShared(); // 唤醒下一个节点
}
}跟进doReleaseShared()方法，唤醒节点
private void doReleaseShared() {
for (;;) {
Node h = head;
if (h != null && h != tail) {
int ws = h.waitStatus;
if (ws == Node.SIGNAL) {
if (!compareAndSetWaitStatus(h, Node.SIGNAL, 0))
continue;
unparkSuccessor(h);// 接着唤醒下一个节点
}
else if (ws == 0 &&
!compareAndSetWaitStatus(h, 0, Node.PROPAGATE))
continue;
}
if (h == head)
break;
}
}1.3.2 解锁
release()方法：
public void release() {
sync.releaseShared(1);
}继续跟进sync.releaseShared(1);方法：
public final boolean releaseShared(int arg) {
if (tryReleaseShared(arg)) { // tryReleaseShared更改cas的值 标记①，tryReleaseShared(arg)后面解析
doReleaseShared(); // doReleaseShared唤醒 标记②，doReleaseShared()后面解析
return true;
}
return false;
}解析标记①，跟进tryReleaseShared(arg)方法的非公平实现：
protected final boolean tryReleaseShared(int releases) {
for (;;) {
int current = getState();
int next = current + releases; // 还回去
if (next < current) // overflow
throw new Error("Maximum permit count exceeded");
if (compareAndSetState(current, next)) // cas
return true;
}
}解析标记②，跟进 doReleaseShared()方法：
private void doReleaseShared() {
for (;;) {
Node h = head;
if (h != null && h != tail) {
int ws = h.waitStatus;
if (ws == Node.SIGNAL) {
if (!compareAndSetWaitStatus(h, Node.SIGNAL, 0))
continue;
// 唤醒下一个
unparkSuccessor(h);
}
else if (ws == 0 &&
!compareAndSetWaitStatus(h, 0, Node.PROPAGATE))
continue; // cas操作失败，自旋
}
if (h == head)
break; // 循环的过程中头节点没有被改变，就结束自旋
}
}被唤醒的线程回到，挂起的地方，进行自旋。
