一，Spring AOP 配置使用
目前 Spring AOP 一共有三种配置方式，Spring 做到了很好地向下兼容，所以大家可以放心使用。
- Spring 1.2 基于接口的配置：最早的 Spring AOP 是完全基于几个接口的，想看源码的同学可以从这里起步。
- Spring 2.0 schema-based 配置：Spring 2.0 以后使用 XML 的方式来配置，使用 命名空间
- Spring 2.0 @AspectJ 配置：使用注解的方式来配置，这种方式感觉是最方便的，还有，这里虽然叫 做 @AspectJ，但是这个和 AspectJ 其实没啥关系。
Spring 1.2 中的配置 这节我们将介绍 Spring 1.2 中的配置，这是最古老的配置，但是由于 Spring 提供了很好的向后兼容，以及很多人根本 不知道什么配置是什么版本的，以及是否有更新更好的配置方法替代，所以还是会有很多代码是采用这种古老的配置方 式的（比如声明式事务），这里说的古老并没有贬义的意思。
首先定义需要被增强的类：接口：Calculate.java， 实现类：TulingCalculate.java
Calculate.java代码如下：
public interface Calculate {
// 加法
int add(int numA, int numB);
// 减法
int sub(int numA, int numB);
// 除法
int div(int numA, int numB);
// 乘法
int multi(int numA, int numB);
// 取余
int mod(int numA, int numB);
}TulingCalculate.java代码如下：
@Component
public class TulingCalculate implements Calculate {
public int add(int numA, int numB) {
System.out.println("执行目标方法:add");
return numA+numB;
public int sub(int numA, int numB) {
System.out.println("执行目标方法:reduce");
return numA-numB;
public int div(int numA, int numB) {
System.out.println("执行目标方法:div");
return numA/numB;
}
public int multi(int numA, int numB) {
System.out.println("执行目标方法:multi")
return numA*numB;
}
public int mod(int numA,int numB){
System.out.println("执行目标方法:mod");
int retVal = ((Calculate)AopContext.currentProxy()).add(numA,numB);
//int retVal = this.add(numA,numB);
return retVal%numA;
//return numA%numB;
}
}接下来，我们定义 advice或Interceptor：
Advice通知：
public class TulingLogAdvice implements MethodBeforeAdvice {
@Override
public void before(Method method, Object[] args, Object target) throws Throwable {
String methodName = method.getName();
System.out.println("执行目标方法【" + methodName + "】的前置通知,入参" + Arrays.asList(args));
}
}Interceptor拦截：
public class TulingLogInterceptor implements MethodInterceptor {
@Override
public Object invoke(MethodInvocation invocation) throws Throwable {
System.out.println(getClass()+"调用方法前");
Object ret = invocation.proceed();
System.out.println(getClass()+"调用方法后");
return ret;
}
}基础配置EalyAopMainConfig：
public class EalyAopMainConfig {
// 被代理对象
@Bean
public Calculate tulingCalculate() {
return new TulingCalculate();
}
// Advice 方式
@Bean
public TulingLogAdvice tulingLogAdvice(){
return new TulingLogAdvice();
}
// Interceptor方式，可以理解为环绕通知
@Bean
public TulingLogInterceptor tulingLogInterceptor() {
return new TulingLogInterceptor();
}
}1.1FactoryBean方式创建单个代理
基础配置EalyAopMainConfig中新增如下代码：
/**
* FactoryBean方式单个： ProxyFactoryBean
* 此中方法有个致命的问题，如果我们只能指定单一的Bean的AOP，
* 如果多个Bean需要创建多个ProxyFactoryBean 。
* 而且，我们看到，我们的拦截器的粒度只控制到了类级别，类中所有的方法都进行了拦截。
* 接下来，我们看看怎么样只拦截特定的方法。
* @return
*/
@Bean
public ProxyFactoryBean calculateProxy(){
ProxyFactoryBean userService = new ProxyFactoryBean();
userService.setInterceptorNames("tulingLogAdvice","tulingLogInterceptor"); // 根据指定的顺序执行
userService.setTarget(tulingCalculate());
return userService;
}接下来，我们跑起来看看：
public static void main(String[] args) {
AnnotationConfigApplicationContext ctx = new AnnotationConfigApplicationContext(EalyAopMainConfig.class);
Calculate calculateProxy = ctx.getBean("calculateProxy",Calculate.class); // 获取代理对象
calculateProxy.div(1,1);

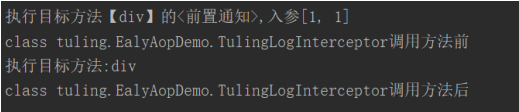

}查看输出结果：
从结果可以看到，使用了责任链方式对advice和Interceptor都进行调用。这个例子理解起来应该非常简单，就是通过调用FactoryBean的getObject方法创建一个代理实现。上面方法有个致命的问题，如果我们只能指定单一的Bean的AOP， 如果多个Bean需要创建多个ProxyFactoryBean 。而且我们看到，我们的拦截器的粒度只控制到了类级别，类中所有的方法都进行了拦截。接下来，我们看看怎么样只拦截特定的方法。
1.2FactoryBean方式拦截特定的方法
基础配置中EalyAopMainConfig中新增如下代码：
/**
* Advisor 种类很多：
* RegexpMethodPointcutAdvisor 按正则匹配类
* NameMatchMethodPointcutAdvisor 按方法名匹配
* DefaultBeanFactoryPointcutAdvisor xml解析的Advisor <aop:before
* InstantiationModelAwarePointcutAdvisorImpl 注解解析的advisor(@Before @After....)
* @return
* */
@Bean
public NameMatchMethodPointcutAdvisor tulingLogAspectAdvisor() {
NameMatchMethodPointcutAdvisor advisor = new NameMatchMethodPointcutAdvisor();
// 通知(Advice) ：是我们的通知类 没有带切点
// 通知者(Advisor)：是经过包装后的细粒度控制方式。 带了切点
advisor.setAdvice(tulingLogAdvice());
advisor.setMappedNames("div");
return advisor;
}
/**
* FactoryBean方式单个： ProxyFactoryBean
* 控制粒度到方法
* 问题：如果我们只能指定单一的Bean的AOP，
* 如果多个Bean需要创建多个ProxyFactoryBean 。
* @return
* */
@Bean
public ProxyFactoryBean calculateProxy(){
ProxyFactoryBean userService=new ProxyFactoryBean();
userService.setInterceptorNames("tulingLogAspectAdvisor");
userService.setTarget(tulingCalculate());
return userService;
}在上面的配置中，配置拦截器的时候，interceptorNames 除了指定为 Advice，是还可以指定为 Interceptor 和Advisor的。这里我们来理解 Advisor 的概念，它也比较简单，它内部需要指定一个 Advice，Advisor 决定该拦截哪些方法，拦截后需要完成的工作还是内部的 Advice 来做。它有好几个实现类，这里我们使用实现类 NameMatchMethodPointcutAdvisor 来演示，从名字上就可以看出来，它需要我们给它提供方法名字，这样符合该配置的方法才会做拦截。
我们可以看到，calculateProxy这个 bean 配置了一个 advisor，advisor 内部有一个 advice。advisor 负责匹配方法，内部的 advice 负责实现方法包装。注意，这里的 mappedNames 配置是可以指定多个的，用逗号分隔，可以是不同类中的方法。相比直接指定 advice，advisor 实现了更细粒度的控制，因为在这里配置 advice 的话，所有方法都会被拦截。
接下来，我们跑起来看看：
public static void main(String[] args) {
AnnotationConfigApplicationContext ctx = new AnnotationConfigApplicationContext(EalyAopMainConfig.class);
Calculate calculateProxy = ctx.getBean("calculateProxy",Calculate.class); // 获取代理对象
calculateProxy.div(1,1);
}输出结果如下，只有 div方法被拦截：
上面我们介绍完了 Advice、Advisor、Interceptor 三个概念，相信大家应该很容易就看懂它们了。它们有个共同的问题，那就是我们得为每个 bean 都配置一个代理，之后获取 bean 的时候需要获取这个代理类的 bean实例：
ctx.getBean("calculateProxy",Calculate.class) 这显然非常不方便，不利于我们之后要使用的自动根据类型注入。下面介绍 autoproxy 的解决方案。autoproxy：从名字我们也可以看出来，它是实现自动代理，也就是说当 Spring 发现一个 bean 需要被切面织入的时候，Spring 会自动生成这个 bean 的一个代理来拦截方法的执行，确保定义的切面能被执行。这里强调自动，也就是说Spring会自动做这件事，而不用像前面介绍的，我们需要显式地指定代理类的bean。我们去掉原来的ProxyFactoryBean的配置，改为使用BeanNameAutoProxyCreato来配置。
1.3自动生成代理方式创建代理
基础配置中EalyAopMainConfig中新增如下代码：
/**
* Advisor 种类很多：
* RegexpMethodPointcutAdvisor 按正则匹配类
* NameMatchMethodPointcutAdvisor 按方法名匹配
* DefaultBeanFactoryPointcutAdvisor xml解析的Advisor <aop:before
* InstantiationModelAwarePointcutAdvisorImpl 注解解析的advisor(@Before @After....)
* @return
* */
@Bean
public NameMatchMethodPointcutAdvisor tulingLogAspectAdvisor() {
NameMatchMethodPointcutAdvisor advisor = new NameMatchMethodPointcutAdvisor();
// 通知(Advice) ：是我们的通知类 没有带切点
// 通知者(Advisor)：是经过包装后的细粒度控制方式。 带了切点
advisor.setAdvice(tulingLogAdvice());
advisor.setMappedNames("div");
return advisor;
}
/**
* autoProxy: BeanPostProcessor手动指定Advice方式 BeanNameAutoProxyCreator
* @return
**/
@Bean
public BeanNameAutoProxyCreator autoProxyCreator() {
BeanNameAutoProxyCreator beanNameAutoProxyCreator = new BeanNameAutoProxyCreator();
//设置要创建代理的那些Bean的名字
beanNameAutoProxyCreator.setBeanNames("tuling*");
//设置拦截链名字(这些拦截器是有先后顺序的)
beanNameAutoProxyCreator.setInterceptorNames("tulingLogAspectAdvisor");
return beanNameAutoProxyCreator;
} 配置很简单，beanNames 中可以使用正则来匹配 bean 的名字来增强多个类。 也就是说不再是配置某个 bean 的代理了。注意，这里的 InterceptorNames 和前面一样，也是可以配置成 Advisor 和 Interceptor 的。
然后我们修改下使用的地方：
public static void main(String[] args) {
AnnotationConfigApplicationContext ctx = new AnnotationConfigApplicationContext(EalyAopMainConfig.class);
Calculate tulingCalculate = ctx.getBean("tulingCalculate",Calculate.class); // 获取自身对象
tulingCalculate.div(1,1);
}发现没有，我们在使用的时候，完全不需要关心代理了，直接使用原来的类型就可以了，这是非常方便的。
输出结果就是 OrderService 和 UserService 中的每个方法都得到了拦截：
到这里，是不是发现 BeanNameAutoProxyCreator 非常好用，它需要指定被拦截类名的模式(如 *ServiceImpl)，它可以配置多次，这样就可以用来匹配不同模式的类了。另外，在 BeanNameAutoProxyCreator 同一个包中，还有一个非常有用的类 DefaultAdvisorAutoProxyCreator，比上面的 BeanNameAutoProxyCreator 还要方便。之前我们说过，advisor 内部包装了 advice，advisor 负责决定拦截哪些方法，内部 advice 定义拦截后的逻辑。所以，仔细想想其实就是只要让我们的 advisor 全局生效就能实现我们需要的自定义拦截功能、拦截后的逻辑处理。BeanNameAutoProxyCreator 是自己匹配方法，然后交由内部配置 advice 来拦截处理；而 DefaultAdvisorAutoProxyCreator 是让 ioc 容器中的所有 advisor 来匹配方法，advisor 内部都是有 advice 的，让它们内部的 advice 来执行拦截处理。之后，我们需要配置 DefaultAdvisorAutoProxyCreator，它的配置非常简单，直接使用下面这段配置就可以了，它就会使得所有的 Advisor 自动生效，无须其他配置。
我们需要再回头看下 Advisor 的配置，上面我们用了 NameMatchMethodPointcutAdvisor 这个类：
@Bean
public BeanNameAutoProxyCreator autoProxyCreator() {
BeanNameAutoProxyCreator beanNameAutoProxyCreator = new BeanNameAutoProxyCreator();
//设置要创建代理的那些Bean的名字
beanNameAutoProxyCreator.setBeanNames("tuling*");
//设置拦截链名字(这些拦截器是有先后顺序的)
beanNameAutoProxyCreator.setInterceptorNames("tulingLogAspectAdvisor");
return beanNameAutoProxyCreator;
}其实 Advisor 还有一个更加灵活的实现类 RegexpMethodPointcutAdvisor，它能实现正则匹配，如
// RegexpMethodPointcutAdvisor 按正则匹配类
@Bean
public RegexpMethodPointcutAdvisor tulingLogAspectInterceptor() {
RegexpMethodPointcutAdvisor advisor=new RegexpMethodPointcutAdvisor();
advisor.setAdvice(tulingLogInterceptor());
advisor.setPattern("tuling.TulingCalculate.*");
return advisor;
}也就是说，我们能通过配置 Advisor，精确定位到需要被拦截的方法，然后使用内部的 Advice 执行逻辑处理。
在基础配置中EalyAopMainConfig中新增如下代码：
/**
* BeanPostProcessor自动扫描Advisor方式DefaultAdvisorAutoProxyCreator
* @return
**/
@Bean
public DefaultAdvisorAutoProxyCreator autoProxyCreator() {
return new DefaultAdvisorAutoProxyCreator();
}到这里，Spring 1.2 的配置就要介绍完了，Spring 2.0 @AspectJ 配置 和 Spring 2.0 schema-based 配置 这里就不过多赘述了
二，sprinpAop的源码解析
2.1注册Bean定义
一、切面类的解析spring通过@EnableAspectJAutoProxy开启aop切面，在注解类上面发现@Import(AspectJAutoProxyRegistrar.class)，AspectJAutoProxyRegistrar实现了ImportBeanDefinitionRegistrar，所以AspectJAutoProxyRegistrar会通过registerBeanDefinitions方法为我们容器导入beanDefinition.
AspectJAutoProxyRegistrar的registerBeanDefinitions方法如下：
public void registerBeanDefinitions(AnnotationMetadata importingClassMetadata, BeanDefinitionRegistry registry) {
AopConfigUtils.registerAspectJAnnotationAutoProxyCreatorIfNecessary(registry); //注册BeanDefinition
AnnotationAttributes enableAspectJAutoProxy = AnnotationConfigUtils.attributesFor(importingClassMetadata, EnableAspectJAutoProxy.class);
if (enableAspectJAutoProxy != null) {
if (enableAspectJAutoProxy.getBoolean("proxyTargetClass")) {
AopConfigUtils.forceAutoProxyCreatorToUseClassProxying(registry);
}
if (enableAspectJAutoProxy.getBoolean("exposeProxy")) {
AopConfigUtils.forceAutoProxyCreatorToExposeProxy(registry);
}
}
}继续跟进AopConfigUtils.registerAspectJAnnotationAutoProxyCreatorIfNecessary(registry)方法：
@Nullable
public static BeanDefinition registerAspectJAnnotationAutoProxyCreatorIfNecessary(BeanDefinitionRegistry registry, @Nullable Object source) {
return registerOrEscalateApcAsRequired(AnnotationAwareAspectJAutoProxyCreator.class, registry, source);
}由上方代码可知registerAspectJAnnotationAutoProxyCreatorIfNecessary方法会注册AnnotationAwareAspectJAutoProxyCreator类

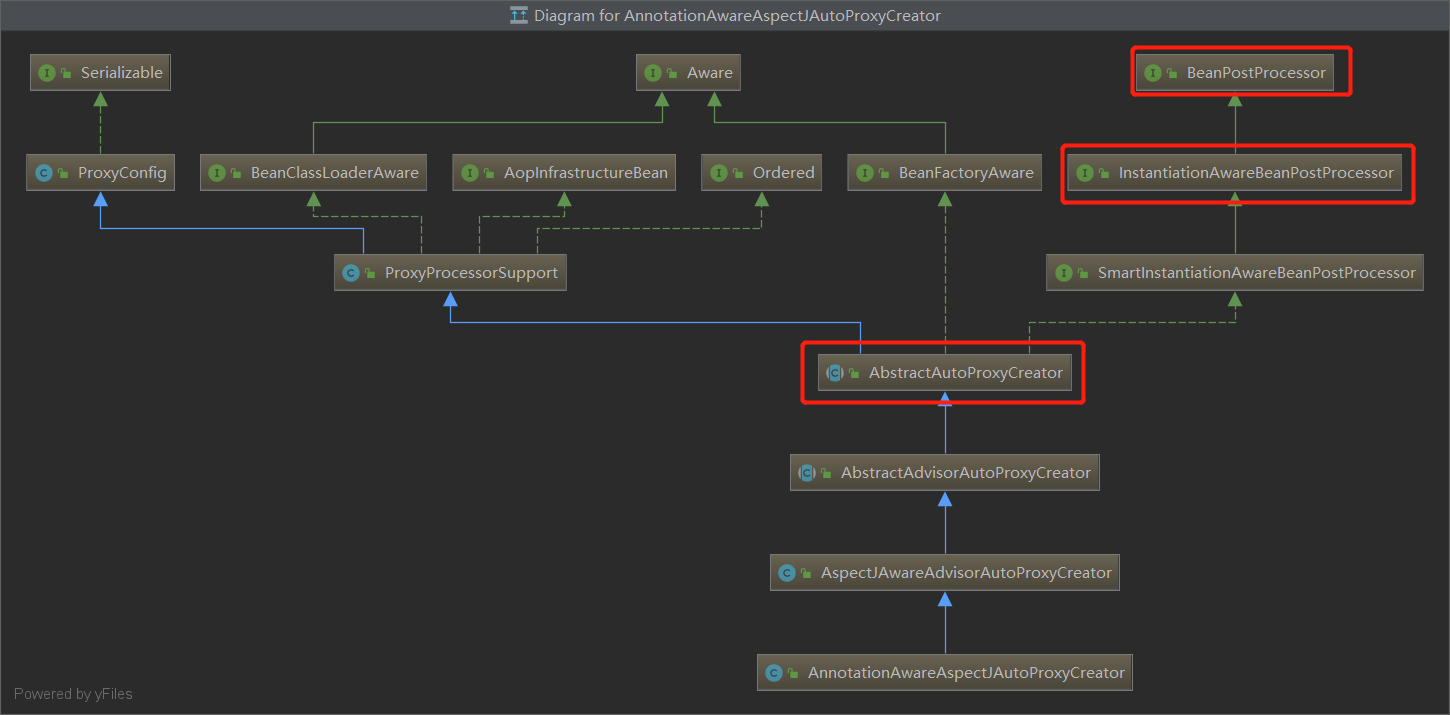

查看AnnotationAwareAspectJAutoProxyCreator类的继承关系图：
AnnotationAwareAspectJAutoProxyCreator继承AbstractAutoProxyCreator类：
- AbstractAutoProxyCreator的postProcessBeforeInstantiation方法是真正实现InstantionAwareBeanPostProcessor接口用于解析切面类生成Advisor。
- AbStorctAutoProxyCreator的postProcessAfterInitialization方法是真正实现BeanPostProcessor接口用于判断是否需要生成代理，需要就生成返回代理。
所以AbstractAutoProxyCreator是非常重要的。
2.2创建实例
，AnnotationConfigApplicationContext的构造方法中的第三行代码，解析刷新容器：
public AnnotationConfigApplicationContext(Class... componentClasses) {
this(); // 一，调用自己的无参构造
this.register(componentClasses); // 二，注册配置类
this.refresh(); // 三，刷新容器
}public void refresh() throws BeansException, IllegalStateException {
synchronized(this.startupShutdownMonitor) {
// 刷新预处理，和主流程关系不大，就是保存了容器的启动时间，启动标志等
this.prepareRefresh();
// 和主流程关系也不大，最终获得了DefaultListableBeanFactory，
// DefaultListableBeanFactory实现了ConfigurableListableBeanFactory
ConfigurableListableBeanFactory beanFactory = this.obtainFreshBeanFactory();
//还是一些准备工作，添加了两个后置处理器：ApplicationContextAwareProcessor，ApplicationListenerDetector
// 还设置了 忽略自动装配 和 允许自动装配 的接口,如果不存在某个bean的时候，spring就自动注册singleton bean
// 还设置了bean表达式解析器等
this.prepareBeanFactory(beanFactory);
try {
// 这是一个空方法
this.postProcessBeanFactory(beanFactory);
// 执行自定义的BeanFactoryProcessor和内置的BeanFactoryProcessor
this.invokeBeanFactoryPostProcessors(beanFactory);
// 注册BeanPostProcessor
this.registerBeanPostProcessors(beanFactory);
beanPostProcess.end();
this.initMessageSource();
this.initApplicationEventMulticaster();
this.onRefresh();
this.registerListeners();
// 实例化创建bean
this.finishBeanFactoryInitialization(beanFactory);
this.finishRefresh();
} catch (BeansException var10) {
if (this.logger.isWarnEnabled()) {
this.logger.warn("Exception encountered during context initialization - cancelling refresh attempt: " + var10);
}
this.destroyBeans();
this.cancelRefresh(var10);
throw var10;
} finally {
this.resetCommonCaches();
contextRefresh.end();
}
}
}在refresh()方法中通过this.invokeBeanFactoryPostProcessors(beanFactory);解析注解生成Bean定义，在this.registerBeanPostProcessors(beanFactory);将AnnotationAwareAspectJAutoProxyCreator实例化：
registerBeanPostProcessors方法源码：
public static void registerBeanPostProcessors(ConfigurableListableBeanFactory beanFactory, AbstractApplicationContext applicationContext) {
// 获取所有BeanPostProcessor的beanName
String[] postProcessorNames = beanFactory.getBeanNamesForType(BeanPostProcessor.class, true, false);
int beanProcessorTargetCount = beanFactory.getBeanPostProcessorCount() + 1 + postProcessorNames.length;
beanFactory.addBeanPostProcessor(new PostProcessorRegistrationDelegate.BeanPostProcessorChecker(beanFactory, beanProcessorTargetCount));
List<BeanPostProcessor> priorityOrderedPostProcessors = new ArrayList();
List<BeanPostProcessor> internalPostProcessors = new ArrayList();
List<String> orderedPostProcessorNames = new ArrayList();
List<String> nonOrderedPostProcessorNames = new ArrayList();
String[] var8 = postProcessorNames;
int var9 = postProcessorNames.length; // 获取BeanPostProcessor的beanName的数组长度
String ppName;
BeanPostProcessor pp;
for(int var10 = 0; var10 < var9; ++var10) {
ppName = var8[var10];
if (beanFactory.isTypeMatch(ppName, PriorityOrdered.class)) { // 判断是否实现PriorityOrdered
// 通过getBean方法创建实例
pp = (BeanPostProcessor)beanFactory.getBean(ppName, BeanPostProcessor.class);
priorityOrderedPostProcessors.add(pp); // 存入实现PriorityOrdered的BeanPostProcessor集合中
if (pp instanceof MergedBeanDefinitionPostProcessor) {
internalPostProcessors.add(pp);
}
} else if (beanFactory.isTypeMatch(ppName, Ordered.class)) {
orderedPostProcessorNames.add(ppName); // 存入实现Ordered的BeanPostProcessor集合中
} else {
nonOrderedPostProcessorNames.add(ppName);// 存入既没有实现PriorityOrdered也没有Ordered的BeanPostProcessor集合中
}
}
// 排序
sortPostProcessors(priorityOrderedPostProcessors, beanFactory);
// 将priorityOrderedPostProcessors保存到beanFactory的成员变量private final List<BeanPostProcessor> beanPostProcessors中
registerBeanPostProcessors(beanFactory, (List)priorityOrderedPostProcessors);
List<BeanPostProcessor> orderedPostProcessors = new ArrayList(orderedPostProcessorNames.size());
Iterator var14 = orderedPostProcessorNames.iterator();
while(var14.hasNext()) {
String ppName = (String)var14.next();
// 通过getBean方法创建实例
BeanPostProcessor pp = (BeanPostProcessor)beanFactory.getBean(ppName, BeanPostProcessor.class);
orderedPostProcessors.add(pp);
if (pp instanceof MergedBeanDefinitionPostProcessor) {
internalPostProcessors.add(pp);
}
}
// 排序
sortPostProcessors(orderedPostProcessors, beanFactory);
// 将orderedPostProcessors保存到beanFactory的成员变量private final List<BeanPostProcessor> beanPostProcessors中
registerBeanPostProcessors(beanFactory, (List)orderedPostProcessors);
List<BeanPostProcessor> nonOrderedPostProcessors = new ArrayList(nonOrderedPostProcessorNames.size());
Iterator var17 = nonOrderedPostProcessorNames.iterator();
while(var17.hasNext()) {
ppName = (String)var17.next();
// 通过getBean方法创建实例
pp = (BeanPostProcessor)beanFactory.getBean(ppName, BeanPostProcessor.class);
nonOrderedPostProcessors.add(pp);
if (pp instanceof MergedBeanDefinitionPostProcessor) {
internalPostProcessors.add(pp);
}
}
// 将nonOrderedPostProcessorss保存到beanFactory的成员变量private final List<BeanPostProcessor> beanPostProcessors中
registerBeanPostProcessors(beanFactory, (List)nonOrderedPostProcessors);
sortPostProcessors(internalPostProcessors, beanFactory);
registerBeanPostProcessors(beanFactory, (List)internalPostProcessors);
beanFactory.addBeanPostProcessor(new ApplicationListenerDetector(applicationContext));
}registerBeanPostProcessors方法将实现BeanPostProcessor接口的Bean进行实例化，优先注册实现了PriorityOrdered接口的BeanPostProcessor，再给容器中注册实现了Ordered接口的BeanPostProcessor，最后才注册没有实现优先级接口的BeanPostProcessor。
2.3解析切面的过程
spring的生命周期中创建bean的方法如下：
protected Object createBean(String beanName, RootBeanDefinition mbd, @Nullable Object[] args) throws BeanCreationException {
if (this.logger.isTraceEnabled()) {
this.logger.trace("Creating instance of bean '" + beanName + "'");
}
RootBeanDefinition mbdToUse = mbd;
Class<?> resolvedClass = this.resolveBeanClass(mbd, beanName, new Class[0]);
if (resolvedClass != null && !mbd.hasBeanClass() && mbd.getBeanClassName() != null) {
mbdToUse = new RootBeanDefinition(mbd);
mbdToUse.setBeanClass(resolvedClass);
}
try {
mbdToUse.prepareMethodOverrides();
} catch (BeanDefinitionValidationException var9) {
throw new BeanDefinitionStoreException(mbdToUse.getResourceDescription(), beanName, "Validation of method overrides failed", var9);
}
Object beanInstance;
try {
beanInstance = this.resolveBeforeInstantiation(beanName, mbdToUse); // 调用实现BeanPostProcessor
if (beanInstance != null) {
return beanInstance;
}
} catch (Throwable var10) {
throw new BeanCreationException(mbdToUse.getResourceDescription(), beanName, "BeanPostProcessor before instantiation of bean failed", var10);
}
try {
beanInstance = this.doCreateBean(beanName, mbdToUse, args); // 创建bean
if (this.logger.isTraceEnabled()) {
this.logger.trace("Finished creating instance of bean '" + beanName + "'");
}
return beanInstance;
} catch (ImplicitlyAppearedSingletonException | BeanCreationException var7) {
throw var7;
} catch (Throwable var8) {
throw new BeanCreationException(mbdToUse.getResourceDescription(), beanName, "Unexpected exception during bean creation", var8);
}
}在调用doCreateBeanf方法之前通过resolveBeforeInstantiation方法调用实现BeanPostProcessor：
protected Object resolveBeforeInstantiation(String beanName, RootBeanDefinition mbd) {
Object bean = null;
if (!Boolean.FALSE.equals(mbd.beforeInstantiationResolved)) {
if (!mbd.isSynthetic() && this.hasInstantiationAwareBeanPostProcessors()) {
Class<?> targetType = this.determineTargetType(beanName, mbd);
if (targetType != null) {
// 第一处调用beanPostProcessor地方
bean = this.applyBeanPostProcessorsBeforeInstantiation(targetType, beanName);
// 如果获取bean对象，说明生成了代理对象
if (bean != null) {
bean = this.applyBeanPostProcessorsAfterInitialization(bean, beanName);
}
}
}
mbd.beforeInstantiationResolved = bean != null;
}
return bean;
}继续查看applyBeanPostProcessorsBeforeInstantiation方法：
@Nullable
protected Object applyBeanPostProcessorsBeforeInstantiation(Class<?> beanClass, String beanName) {
Iterator var3 = this.getBeanPostProcessorCache().instantiationAware.iterator();
Object result;
do {
if (!var3.hasNext()) {
return null;
}
InstantiationAwareBeanPostProcessor bp = (InstantiationAwareBeanPostProcessor)var3.next();
result = bp.postProcessBeforeInstantiation(beanClass, beanName);
} while(result == null);
return result;
}看到InstantiationAwareBeanPostProcessor这个接口，你会发现spring通过@EnableAspectJAutoProxy开启aop切面，会为我们容器导入beanDefinition.这个beanDefinition就是AnnotationAwareAspectJAutoProxyCreator类，AnnotationAwareAspectJAutoProxyCreator实现了InstantiationAwareBeanPostProcessor这个接口。所以我们继续查看AnnotationAwareAspectJAutoProxyCreator的postProcessBeforeInstantiation方法，发现AnnotationAwareAspectJAutoProxyCreator中没有重写postProcessBeforeInstantiation方法，但是其父类AbstractAutoProxyCreator实现了postProcessBeforeInstantiation方法：
public Object postProcessBeforeInstantiation(Class<?> beanClass, String beanName) {
Object cacheKey = this.getCacheKey(beanClass, beanName);
if (!StringUtils.hasLength(beanName) || !this.targetSourcedBeans.contains(beanName)) {
if (this.advisedBeans.containsKey(cacheKey)) { // 是否解析过
return null;
}
// isInfrastructureClass方法判断是切面，通知，切点
// shouldSkip方法获取候选的advisors
if (this.isInfrastructureClass(beanClass) || this.shouldSkip(beanClass, beanName)) {
this.advisedBeans.put(cacheKey, Boolean.FALSE);
return null;
}
}
// ，，，，省略代码
}shouldSkip方法：
protected boolean shouldSkip(Class<?> beanClass, String beanName) {
// 获取所有的Advisor
List<Advisor> candidateAdvisors = this.findCandidateAdvisors();
Iterator var4 = candidateAdvisors.iterator();
Advisor advisor;
do {
if (!var4.hasNext()) {
return super.shouldSkip(beanClass, beanName);
}
advisor = (Advisor)var4.next();
/// while中的判断是跳过通过xml配置的AspectJPointcutAdvisor
} while(!(advisor instanceof AspectJPointcutAdvisor) || !((AspectJPointcutAdvisor)advisor).getAspectName().equals(beanName));
return true;
}findCandidateAdvisors方法获取所有的Advisor：
protected List<Advisor> findCandidateAdvisors() {
// 获取实现Advisor接口的，事务通过这个findCandidateAdvisors方法获取
List<Advisor> advisors = super.findCandidateAdvisors();
if (this.aspectJAdvisorsBuilder != null) {
// 解析注解的通过spectJAdvisorsBuilder.buildAspectJAdvisors()方式构建
advisors.addAll(this.aspectJAdvisorsBuilder.buildAspectJAdvisors());
}
return advisors;
}findCandidateAdvisors方法获取
public List<Advisor> findAdvisorBeans() {
// 获取缓存的值
String[] advisorNames = this.cachedAdvisorBeanNames;
if (advisorNames == null) {
// 从容器中获取所有Advisor类型的beanName
advisorNames = BeanFactoryUtils.beanNamesForTypeIncludingAncestors(this.beanFactory, Advisor.class, true, false);
// 加入缓存
this.cachedAdvisorBeanNames = advisorNames;
}
if (advisorNames.length == 0) {
return new ArrayList();
} else {
List<Advisor> advisors = new ArrayList();
String[] var3 = advisorNames;
int var4 = advisorNames.length; // 遍历
for(int var5 = 0; var5 < var4; ++var5) {
String name = var3[var5];
// isEligibleBean方法判断名字是否符合
if (this.isEligibleBean(name)) {
// 判断工厂是否已经创建过
if (this.beanFactory.isCurrentlyInCreation(name)) {
if (logger.isTraceEnabled()) {
logger.trace("Skipping currently created advisor '" + name + "'");
}
} else {
try {
// 没创建通过getBean创建
advisors.add(this.beanFactory.getBean(name, Advisor.class));
} catch (BeanCreationException var11) {
Throwable rootCause = var11.getMostSpecificCause();
if (rootCause instanceof BeanCurrentlyInCreationException) {
BeanCreationException bce = (BeanCreationException)rootCause;
String bceBeanName = bce.getBeanName();
if (bceBeanName != null && this.beanFactory.isCurrentlyInCreation(bceBeanName)) {
if (logger.isTraceEnabled()) {
logger.trace("Skipping advisor '" + name + "' with dependency on currently created bean: " + var11.getMessage());
}
continue;
}
}
throw var11;
}
}
}
}
return advisors;
}
}buildAspectJAdvisors构建：
public List<Advisor> buildAspectJAdvisors() {
List<String> aspectNames = this.aspectBeanNames;
if (aspectNames == null) {
synchronized(this) {
aspectNames = this.aspectBeanNames;
if (aspectNames == null) {
List<Advisor> advisors = new ArrayList();
List<String> aspectNames = new ArrayList();
// 获取所有的bean
String[] beanNames = BeanFactoryUtils.beanNamesForTypeIncludingAncestors(this.beanFactory, Object.class, true, false);
String[] var18 = beanNames;
int var19 = beanNames.length;
for(int var7 = 0; var7 < var19; ++var7) {
String beanName = var18[var7];
if (this.isEligibleBean(beanName)) {
Class<?> beanType = this.beanFactory.getType(beanName, false);
// 判断是否有@AspectJ
if (beanType != null && this.advisorFactory.isAspect(beanType)) {
// 存储切面类的缓存
aspectNames.add(beanName);
AspectMetadata amd = new AspectMetadata(beanType, beanName);
if (amd.getAjType().getPerClause().getKind() == PerClauseKind.SINGLETON) {
MetadataAwareAspectInstanceFactory factory = new BeanFactoryAspectInstanceFactory(this.beanFactory, beanName);
// 解析获取Advisors
List<Advisor> classAdvisors = this.advisorFactory.getAdvisors(factory);
// 加入到缓存中
if (this.beanFactory.isSingleton(beanName)) {
this.advisorsCache.put(beanName, classAdvisors);
} else {
this.aspectFactoryCache.put(beanName, factory);
}
advisors.addAll(classAdvisors);
} else {
if (this.beanFactory.isSingleton(beanName)) {
throw new IllegalArgumentException("Bean with name '" + beanName + "' is a singleton, but aspect instantiation model is not singleton");
}
MetadataAwareAspectInstanceFactory factory = new PrototypeAspectInstanceFactory(this.beanFactory, beanName);
this.aspectFactoryCache.put(beanName, factory);
advisors.addAll(this.advisorFactory.getAdvisors(factory));
}
}
}
}
this.aspectBeanNames = aspectNames;
return advisors;
}
}
}
// ,,, 不重要省略代码
}getAdvisors解析获取Advisors：
public List<Advisor> getAdvisors(MetadataAwareAspectInstanceFactory aspectInstanceFactory) {
Class<?> aspectClass = aspectInstanceFactory.getAspectMetadata().getAspectClass();
String aspectName = aspectInstanceFactory.getAspectMetadata().getAspectName();
this.validate(aspectClass);
MetadataAwareAspectInstanceFactory lazySingletonAspectInstanceFactory = new LazySingletonAspectInstanceFactoryDecorator(aspectInstanceFactory);
List<Advisor> advisors = new ArrayList();
// 获取切面类的除了标记所有方法
Iterator var6 = this.getAdvisorMethods(aspectClass).iterator();
while(var6.hasNext()) {
Method method = (Method)var6.next();
//遍历方法生成advisor
Advisor advisor = this.getAdvisor(method, lazySingletonAspectInstanceFactory, 0, aspectName);
if (advisor != null) {
advisors.add(advisor);
}
}
// ，，，，，， 非核心代码省略
return advisors;
}getAdvisorMethods获取切面类的除了标记所有方法：
private List<Method> getAdvisorMethods(Class<?> aspectClass) {
List<Method> methods = new ArrayList();
//aspectClass通过adviceMethodFilter排除pointCut方法，其余的方法保存在methods
ReflectionUtils.doWithMethods(aspectClass, methods::add, adviceMethodFilter);
if (methods.size() > 1) {
methods.sort(adviceMethodComparator); // 简单排序会按照before、after、afterReturning、AfterThrowing顺序
}
return methods;
}getAdvisor遍历方法生成advisor：
public Advisor getAdvisor(Method candidateAdviceMethod, MetadataAwareAspectInstanceFactory aspectInstanceFactory, int declarationOrderInAspect, String aspectName) {
this.validate(aspectInstanceFactory.getAspectMetadata().getAspectClass());
// 获取Pointcut，Advisor是由Advisor和增强组成的
AspectJExpressionPointcut expressionPointcut = this.getPointcut(candidateAdviceMethod, aspectInstanceFactory.getAspectMetadata().getAspectClass());
return expressionPointcut == null ? null : new InstantiationModelAwarePointcutAdvisorImpl(expressionPointcut, candidateAdviceMethod, this, aspectInstanceFactory, declarationOrderInAspect, aspectName);
}InstantiationModelAwarePointcutAdvisorImpl构造方法：
public InstantiationModelAwarePointcutAdvisorImpl(AspectJExpressionPointcut declaredPointcut, Method aspectJAdviceMethod, AspectJAdvisorFactory aspectJAdvisorFactory, MetadataAwareAspectInstanceFactory aspectInstanceFactory, int declarationOrder, String aspectName) {
this.declaredPointcut = declaredPointcut;
this.declaringClass = aspectJAdviceMethod.getDeclaringClass();
this.methodName = aspectJAdviceMethod.getName();
this.parameterTypes = aspectJAdviceMethod.getParameterTypes();
this.aspectJAdviceMethod = aspectJAdviceMethod;
this.aspectJAdvisorFactory = aspectJAdvisorFactory;
this.aspectInstanceFactory = aspectInstanceFactory;
this.declarationOrder = declarationOrder;
this.aspectName = aspectName;
if (aspectInstanceFactory.getAspectMetadata().isLazilyInstantiated()) {
Pointcut preInstantiationPointcut = Pointcuts.union(aspectInstanceFactory.getAspectMetadata().getPerClausePointcut(), this.declaredPointcut);
this.pointcut = new InstantiationModelAwarePointcutAdvisorImpl.PerTargetInstantiationModelPointcut(this.declaredPointcut, preInstantiationPointcut, aspectInstanceFactory);
this.lazy = true;
} else {
this.pointcut = this.declaredPointcut;
this.lazy = false;
this.instantiatedAdvice = this.instantiateAdvice(this.declaredPointcut); // 创建Advice
}
}instantiateAdvice 创建Advice：
private Advice instantiateAdvice(AspectJExpressionPointcut pointcut) {
// 通过getAdvice创建Advice
Advice advice = this.aspectJAdvisorFactory.getAdvice(this.aspectJAdviceMethod, pointcut, this.aspectInstanceFactory, this.declarationOrder, this.aspectName);
return advice != null ? advice : EMPTY_ADVICE;
}getAdvice创建Advice：
public Advice getAdvice(Method candidateAdviceMethod, AspectJExpressionPointcut expressionPointcut, MetadataAwareAspectInstanceFactory aspectInstanceFactory, int declarationOrder, String aspectName) {
Class<?> candidateAspectClass = aspectInstanceFactory.getAspectMetadata().getAspectClass();
this.validate(candidateAspectClass);
AspectJAnnotation<?> aspectJAnnotation = AbstractAspectJAdvisorFactory.findAspectJAnnotationOnMethod(candidateAdviceMethod);
if (aspectJAnnotation == null) {
return null;
} else if (!this.isAspect(candidateAspectClass)) {
throw new AopConfigException("Advice must be declared inside an aspect type: Offending method '" + candidateAdviceMethod + "' in class [" + candidateAspectClass.getName() + "]");
} else {
if (this.logger.isDebugEnabled()) {
this.logger.debug("Found AspectJ method: " + candidateAdviceMethod);
}
Object springAdvice;
// 根据不同的注解生成不同的Advice
switch(aspectJAnnotation.getAnnotationType()) {
case AtPointcut:
if (this.logger.isDebugEnabled()) {
this.logger.debug("Processing pointcut '" + candidateAdviceMethod.getName() + "'");
}
return null;
case AtAround:
springAdvice = new AspectJAroundAdvice(candidateAdviceMethod, expressionPointcut, aspectInstanceFactory);
break;
case AtBefore:
springAdvice = new AspectJMethodBeforeAdvice(candidateAdviceMethod, expressionPointcut, aspectInstanceFactory);
break;
case AtAfter:
springAdvice = new AspectJAfterAdvice(candidateAdviceMethod, expressionPointcut, aspectInstanceFactory);
break;
case AtAfterReturning:
springAdvice = new AspectJAfterReturningAdvice(candidateAdviceMethod, expressionPointcut, aspectInstanceFactory);
AfterReturning afterReturningAnnotation = (AfterReturning)aspectJAnnotation.getAnnotation();
if (StringUtils.hasText(afterReturningAnnotation.returning())) {
((AbstractAspectJAdvice)springAdvice).setReturningName(afterReturningAnnotation.returning());
}
break;
case AtAfterThrowing:
springAdvice = new AspectJAfterThrowingAdvice(candidateAdviceMethod, expressionPointcut, aspectInstanceFactory);
AfterThrowing afterThrowingAnnotation = (AfterThrowing)aspectJAnnotation.getAnnotation();
if (StringUtils.hasText(afterThrowingAnnotation.throwing())) {
((AbstractAspectJAdvice)springAdvice).setThrowingName(afterThrowingAnnotation.throwing());
}
break;
default:
throw new UnsupportedOperationException("Unsupported advice type on method: " + candidateAdviceMethod);
}
((AbstractAspectJAdvice)springAdvice).setAspectName(aspectName);
((AbstractAspectJAdvice)springAdvice).setDeclarationOrder(declarationOrder);
String[] argNames = this.parameterNameDiscoverer.getParameterNames(candidateAdviceMethod);
if (argNames != null) {
((AbstractAspectJAdvice)springAdvice).setArgumentNamesFromStringArray(argNames);
}
((AbstractAspectJAdvice)springAdvice).calculateArgumentBindings();
return (Advice)springAdvice;
}
}2.4创建代理的过程
创建代理正常情况下是在初始化之后创建的，发生循环依赖的情况下是在实例化之后，属性赋值之前创建的。
下面是常情况下代理对象的创建：
createBean创建：
protected Object createBean(String beanName, RootBeanDefinition mbd, @Nullable Object[] args) throws BeanCreationException {
if (this.logger.isTraceEnabled()) {
this.logger.trace("Creating instance of bean '" + beanName + "'");
}
RootBeanDefinition mbdToUse = mbd;
Class<?> resolvedClass = this.resolveBeanClass(mbd, beanName, new Class[0]);
if (resolvedClass != null && !mbd.hasBeanClass() && mbd.getBeanClassName() != null) {
mbdToUse = new RootBeanDefinition(mbd);
mbdToUse.setBeanClass(resolvedClass);
}
try {
mbdToUse.prepareMethodOverrides();
} catch (BeanDefinitionValidationException var9) {
throw new BeanDefinitionStoreException(mbdToUse.getResourceDescription(), beanName, "Validation of method overrides failed", var9);
}
Object beanInstance;
try {
// bean的BeanPostProcessor，生成Advisors的地方
beanInstance = this.resolveBeforeInstantiation(beanName, mbdToUse);
if (beanInstance != null) {
return beanInstance;
}
} catch (Throwable var10) {
throw new BeanCreationException(mbdToUse.getResourceDescription(), beanName, "BeanPostProcessor before instantiation of bean failed", var10);
}
try {
// 创建bean实例
beanInstance = this.doCreateBean(beanName, mbdToUse, args);
if (this.logger.isTraceEnabled()) {
this.logger.trace("Finished creating instance of bean '" + beanName + "'");
}
return beanInstance;
} catch (ImplicitlyAppearedSingletonException | BeanCreationException var7) {
throw var7;
} catch (Throwable var8) {
throw new BeanCreationException(mbdToUse.getResourceDescription(), beanName, "Unexpected exception during bean creation", var8);
}
}doCreateBean方法：
protected Object doCreateBean(String beanName, RootBeanDefinition mbd, @Nullable Object[] args) throws BeanCreationException {
BeanWrapper instanceWrapper = null;
if (mbd.isSingleton()) {
instanceWrapper = (BeanWrapper)this.factoryBeanInstanceCache.remove(beanName);
}
if (instanceWrapper == null) {
instanceWrapper = this.createBeanInstance(beanName, mbd, args); // 实例化bean
}
Object bean = instanceWrapper.getWrappedInstance();
Class<?> beanType = instanceWrapper.getWrappedClass();
if (beanType != NullBean.class) {
mbd.resolvedTargetType = beanType;
}
synchronized(mbd.postProcessingLock) {
if (!mbd.postProcessed) {
try {
this.applyMergedBeanDefinitionPostProcessors(mbd, beanType, beanName);
} catch (Throwable var17) {
throw new BeanCreationException(mbd.getResourceDescription(), beanName, "Post-processing of merged bean definition failed", var17);
}
mbd.postProcessed = true;
}
}
boolean earlySingletonExposure = mbd.isSingleton() && this.allowCircularReferences && this.isSingletonCurrentlyInCreation(beanName);
if (earlySingletonExposure) {
if (this.logger.isTraceEnabled()) {
this.logger.trace("Eagerly caching bean '" + beanName + "' to allow for resolving potential circular references");
}
this.addSingletonFactory(beanName, () -> {
return this.getEarlyBeanReference(beanName, mbd, bean);
});
}
Object exposedObject = bean;
try {
this.populateBean(beanName, mbd, instanceWrapper); // 属性赋值
exposedObject = this.initializeBean(beanName, exposedObject, mbd); // 初始化bean
} catch (Throwable var18) {
if (var18 instanceof BeanCreationException && beanName.equals(((BeanCreationException)var18).getBeanName())) {
throw (BeanCreationException)var18;
}
throw new BeanCreationException(mbd.getResourceDescription(), beanName, "Initialization of bean failed", var18);
}
if (earlySingletonExposure) {
Object earlySingletonReference = this.getSingleton(beanName, false);
if (earlySingletonReference != null) {
if (exposedObject == bean) {
exposedObject = earlySingletonReference;
} else if (!this.allowRawInjectionDespiteWrapping && this.hasDependentBean(beanName)) {
String[] dependentBeans = this.getDependentBeans(beanName);
Set<String> actualDependentBeans = new LinkedHashSet(dependentBeans.length);
String[] var12 = dependentBeans;
int var13 = dependentBeans.length;
for(int var14 = 0; var14 < var13; ++var14) {
String dependentBean = var12[var14];
if (!this.removeSingletonIfCreatedForTypeCheckOnly(dependentBean)) {
actualDependentBeans.add(dependentBean);
}
}
if (!actualDependentBeans.isEmpty()) {
throw new BeanCurrentlyInCreationException(beanName, "Bean with name '" + beanName + "' has been injected into other beans [" + StringUtils.collectionToCommaDelimitedString(actualDependentBeans) + "] in its raw version as part of a circular reference, but has eventually been wrapped. This means that said other beans do not use the final version of the bean. This is often the result of over-eager type matching - consider using 'getBeanNamesForType' with the 'allowEagerInit' flag turned off, for example.");
}
}
}
}
try {
this.registerDisposableBeanIfNecessary(beanName, bean, mbd);
return exposedObject;
} catch (BeanDefinitionValidationException var16) {
throw new BeanCreationException(mbd.getResourceDescription(), beanName, "Invalid destruction signature", var16);
}
}initializeBean初始化Bean:
protected Object initializeBean(String beanName, Object bean, @Nullable RootBeanDefinition mbd) {
if (System.getSecurityManager() != null) {
AccessController.doPrivileged(() -> {
this.invokeAwareMethods(beanName, bean);
return null;
}, this.getAccessControlContext());
} else {
this.invokeAwareMethods(beanName, bean);
}
Object wrappedBean = bean;
if (mbd == null || !mbd.isSynthetic()) {
// 初始化之前调用bean的BeanPostProcessor
wrappedBean = this.applyBeanPostProcessorsBeforeInitialization(bean, beanName);
}
try {
this.invokeInitMethods(beanName, wrappedBean, mbd); // 初始化
} catch (Throwable var6) {
throw new BeanCreationException(mbd != null ? mbd.getResourceDescription() : null, beanName, "Invocation of init method failed", var6);
}
if (mbd == null || !mbd.isSynthetic()) {
// 调用bean的BeanPostProcessor
wrappedBean = this.applyBeanPostProcessorsAfterInitialization(wrappedBean, beanName);
}
return wrappedBean;
}applyBeanPostProcessorsAfterInitialization调用bean的BeanPostProcessor：
public Object applyBeanPostProcessorsAfterInitialization(Object existingBean, String beanName) throws BeansException {
Object result = existingBean;
Object current;
for(Iterator var4 = this.getBeanPostProcessors().iterator(); var4.hasNext(); result = current) {
BeanPostProcessor processor = (BeanPostProcessor)var4.next();
current = processor.postProcessAfterInitialization(result, beanName);
if (current == null) {
return result;
}
}
return result;
}看到BeanPostProcessor这个接口，你会发现spring通过@EnableAspectJAutoProxy开启aop切面，会为我们容器导入beanDefinition.这个beanDefinition就是AnnotationAwareAspectJAutoProxyCreator类，AnnotationAwareAspectJAutoProxyCreator实现了BeanPostProcessor这个接口。所以我们继续查看AnnotationAwareAspectJAutoProxyCreator的postProcessAfterInitialization方法，发现AnnotationAwareAspectJAutoProxyCreator中没有重写postProcessAfterInitialization方法，但是其父类AbstractAutoProxyCreator实现了postProcessAfterInitialization方法：
public Object postProcessAfterInitialization(@Nullable Object bean, String beanName) {
if (bean != null) {
Object cacheKey = this.getCacheKey(bean.getClass(), beanName);
// earlyProxyReferences排除之前循环依赖时创建的动态代理
if (this.earlyProxyReferences.remove(cacheKey) != bean) {
return this.wrapIfNecessary(bean, beanName, cacheKey); // 判断是否需要创建代理。
}
}
return bean;
}wrapIfNecessary判断是否需要创建代理对象：
protected Object wrapIfNecessary(Object bean, String beanName, Object cacheKey) {
// 已经处理过的
if (StringUtils.hasLength(beanName) && this.targetSourcedBeans.contains(beanName)) {
return bean;
// advisedBean不需要增强
} else if (Boolean.FALSE.equals(this.advisedBeans.get(cacheKey))) {
return bean;
// isInfrastructureClass方法判断是切面，通知，切点
// shouldSkip方法获取候选的advisors。
} else if (!this.isInfrastructureClass(bean.getClass()) && !this.shouldSkip(bean.getClass(), beanName)) {
Object[] specificInterceptors = this.getAdvicesAndAdvisorsForBean(bean.getClass(), beanName, (TargetSource)null);// 1，获取当前bean匹配的Advisor
if (specificInterceptors != DO_NOT_PROXY) {
this.advisedBeans.put(cacheKey, Boolean.TRUE);
// 2，createProxy创建动态代理
Object proxy = this.createProxy(bean.getClass(), beanName, specificInterceptors, new SingletonTargetSource(bean));
this.proxyTypes.put(cacheKey, proxy.getClass());
return proxy;
} else {
this.advisedBeans.put(cacheKey, Boolean.FALSE);
return bean;
}
} else {
this.advisedBeans.put(cacheKey, Boolean.FALSE);
return bean;
}
}2.4.1获取当前bean匹配的Advisor流程
getAdvicesAndAdvisorsForBean方法获取当前bean匹配的Advisor：
protected List<Advisor> findEligibleAdvisors(Class<?> beanClass, String beanName) {
// 获取实现接口方式的Aop
List<Advisor> candidateAdvisors = this.findCandidateAdvisors();
// 获取命中的的Advisors
List<Advisor> eligibleAdvisors = this.findAdvisorsThatCanApply(candidateAdvisors, beanClass, beanName);
this.extendAdvisors(eligibleAdvisors); // 这个一步会自动给我们添加一个advisors，这个advisors会在调用时体现作用
if (!eligibleAdvisors.isEmpty()) {
eligibleAdvisors = this.sortAdvisors(eligibleAdvisors); /// 排序
}
return eligibleAdvisors;
}findAdvisorsThatCanApply获取命中的的Advisors：
protected List<Advisor> findAdvisorsThatCanApply(List<Advisor> candidateAdvisors, Class<?> beanClass, String beanName) {
ProxyCreationContext.setCurrentProxiedBeanName(beanName);
List var4;
try {
var4 = AopUtils.findAdvisorsThatCanApply(candidateAdvisors, beanClass);
} finally {
ProxyCreationContext.setCurrentProxiedBeanName((String)null);
}
return var4;
}继续跟进findAdvisorsThatCanApply：
public static List<Advisor> findAdvisorsThatCanApply(List<Advisor> candidateAdvisors, Class<?> clazz) {
if (candidateAdvisors.isEmpty()) {
return candidateAdvisors;
} else {
List<Advisor> eligibleAdvisors = new ArrayList();
Iterator var3 = candidateAdvisors.iterator(); // 循环所有Advisors
while(var3.hasNext()) {
Advisor candidate = (Advisor)var3.next();
// 判断是否是引用的Advisor
if (candidate instanceof IntroductionAdvisor && canApply(candidate, clazz)) {
eligibleAdvisors.add(candidate);
}
}
boolean hasIntroductions = !eligibleAdvisors.isEmpty();
Iterator var7 = candidateAdvisors.iterator();// 循环所有Advisors
while(var7.hasNext()) {
Advisor candidate = (Advisor)var7.next();
// 判断Advisor是否命中
if (!(candidate instanceof IntroductionAdvisor) && canApply(candidate, clazz, hasIntroductions)) {
eligibleAdvisors.add(candidate);
}
}
return eligibleAdvisors;
}
}canApply判断Advisor是否命中：
public static boolean canApply(Pointcut pc, Class<?> targetClass, boolean hasIntroductions) {
Assert.notNull(pc, "Pointcut must not be null");
if (!pc.getClassFilter().matches(targetClass)) { // 粗筛
return false;
} else {
MethodMatcher methodMatcher = pc.getMethodMatcher();
if (methodMatcher == MethodMatcher.TRUE) {
return true;
} else {
IntroductionAwareMethodMatcher introductionAwareMethodMatcher = null;
if (methodMatcher instanceof IntroductionAwareMethodMatcher) {
introductionAwareMethodMatcher = (IntroductionAwareMethodMatcher)methodMatcher;
}
Set<Class<?>> classes = new LinkedHashSet();
if (!Proxy.isProxyClass(targetClass)) {
classes.add(ClassUtils.getUserClass(targetClass));
}
// 获取类的接口对象
classes.addAll(ClassUtils.getAllInterfacesForClassAsSet(targetClass));
Iterator var6 = classes.iterator();
while(var6.hasNext()) {
Class<?> clazz = (Class)var6.next();
// 获取接口的所有方法
Method[] methods = ReflectionUtils.getAllDeclaredMethods(clazz);
Method[] var9 = methods;
int var10 = methods.length;
for(int var11 = 0; var11 < var10; ++var11) { // 遍历方法
Method method = var9[var11];
// 进行精筛
if (introductionAwareMethodMatcher != null) {
if (introductionAwareMethodMatcher.matches(method, targetClass, hasIntroductions)) {
return true;
}
} else if (methodMatcher.matches(method, targetClass)) {
return true;
}
}
}
return false;
}
}
}2.4.2createProxy创建动态代理流程
获取命中的advidsor后创建代理对象
createProxy方法创建:
protected Object createProxy(Class<?> beanClass, @Nullable String beanName, @Nullable Object[] specificInterceptors, TargetSource targetSource) {
if (this.beanFactory instanceof ConfigurableListableBeanFactory) {
AutoProxyUtils.exposeTargetClass((ConfigurableListableBeanFactory)this.beanFactory, beanName, beanClass);
}
ProxyFactory proxyFactory = new ProxyFactory();
proxyFactory.copyFrom(this);
if (proxyFactory.isProxyTargetClass()) { //判断是否设置ProxyTargetClass = true，强制使用cglib
if (Proxy.isProxyClass(beanClass) || ClassUtils.isLambdaClass(beanClass)) {
Class[] var6 = beanClass.getInterfaces();
int var7 = var6.length;
for(int var8 = 0; var8 < var7; ++var8) {
Class<?> ifc = var6[var8];
proxyFactory.addInterface(ifc);
}
}
} else if (this.shouldProxyTargetClass(beanClass, beanName)) {
proxyFactory.setProxyTargetClass(true);
} else {
this.evaluateProxyInterfaces(beanClass, proxyFactory);
}
Advisor[] advisors = this.buildAdvisors(beanName, specificInterceptors);
proxyFactory.addAdvisors(advisors);
proxyFactory.setTargetSource(targetSource);
this.customizeProxyFactory(proxyFactory);
proxyFactory.setFrozen(this.freezeProxy);
if (this.advisorsPreFiltered()) {
proxyFactory.setPreFiltered(true);
}
ClassLoader classLoader = this.getProxyClassLoader();
if (classLoader instanceof SmartClassLoader && classLoader != beanClass.getClassLoader()) {
classLoader = ((SmartClassLoader)classLoader).getOriginalClassLoader();
}
// 真正创建代理的地方
return proxyFactory.getProxy(classLoader);

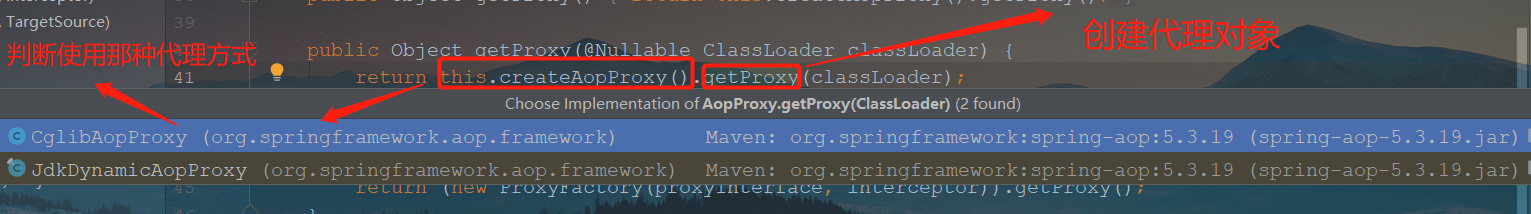

}getProxy真正创建代理的地方:
public Object getProxy(@Nullable ClassLoader classLoader) {
return this.createAopProxy().getProxy(classLoader);
}
createAopProxy：判断使用那种方式
public AopProxy createAopProxy(AdvisedSupport config) throws AopConfigException {
if (NativeDetector.inNativeImage() || !config.isOptimize() && !config.isProxyTargetClass() && !this.hasNoUserSuppliedProxyInterfaces(config)) {
return new JdkDynamicAopProxy(config); // 没有强制使用clglib代理，实现接口使用JdkDynamicAopProxy的代理方式
} else {
Class<?> targetClass = config.getTargetClass();
if (targetClass == null) {
throw new AopConfigException("TargetSource cannot determine target class: Either an interface or a target is required for proxy creation.");
} else {
return (AopProxy)(!targetClass.isInterface() && !Proxy.isProxyClass(targetClass) && !ClassUtils.isLambdaClass(targetClass) ? new ObjenesisCglibAopProxy(config) : new JdkDynamicAopProxy(config));
}
}
}2.4.3调用流程
创建完成代理对象后，代理对象会替代原来的对象放在一级缓存中，我们使用的是一级缓存中的代理对象，在调用方法时会调用代理对象的invoke方法，下面以Jdk动态代理的方式：
@Nullable
public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
Object oldProxy = null;
boolean setProxyContext = false;
TargetSource targetSource = this.advised.targetSource;
Object target = null;
Class var8;
try {
// equals方法不执行动态代理
if (!this.equalsDefined && AopUtils.isEqualsMethod(method)) {
Boolean var18 = this.equals(args[0]);
return var18;
}
// hashCode方法不执行动态代理
if (!this.hashCodeDefined && AopUtils.isHashCodeMethod(method)) {
Integer var17 = this.hashCode();
return var17;
}
// 没有实现DecoratingProxy接口
if (method.getDeclaringClass() != DecoratingProxy.class) {
Object retVal;
// 判断没有实现Advised接口
if (!this.advised.opaque && method.getDeclaringClass().isInterface() && method.getDeclaringClass().isAssignableFrom(Advised.class)) {
retVal = AopUtils.invokeJoinpointUsingReflection(this.advised, method, args);
return retVal;
}
// 判断是否需要暴露当前代理对象
if (this.advised.exposeProxy) {
oldProxy = AopContext.setCurrentProxy(proxy);
setProxyContext = true;
}
target = targetSource.getTarget();
Class<?> targetClass = target != null ? target.getClass() : null;
// 把aop的advice全部转换为Intercept拦截器，通过责任链的方式依次调用
List<Object> chain = this.advised.getInterceptorsAndDynamicInterceptionAdvice(method, targetClass);
if (chain.isEmpty()) {
Object[] argsToUse = AopProxyUtils.adaptArgumentsIfNecessary(method, args);
retVal = AopUtils.invokeJoinpointUsingReflection(target, method, argsToUse);
} else {
//创建ReflectiveMethodInvocation对象通过反射的方式调用Intercept的proceed方法
MethodInvocation invocation = new ReflectiveMethodInvocation(proxy, target, method, args, targetClass, chain);
retVal = invocation.proceed();
}
Class<?> returnType = method.getReturnType();
if (retVal != null && retVal == target && returnType != Object.class && returnType.isInstance(proxy) && !RawTargetAccess.class.isAssignableFrom(method.getDeclaringClass())) {
retVal = proxy;
} else if (retVal == null && returnType != Void.TYPE && returnType.isPrimitive()) {
throw new AopInvocationException("Null return value from advice does not match primitive return type for: " + method);
}
Object var12 = retVal;
return var12;
}
var8 = AopProxyUtils.ultimateTargetClass(this.advised);
} finally {
if (target != null && !targetSource.isStatic()) {
targetSource.releaseTarget(target);
}
if (setProxyContext) {
AopContext.setCurrentProxy(oldProxy);
}
}
return var8;
}ReflectiveMethodInvocation的构造方法：
protected ReflectiveMethodInvocation(Object proxy, @Nullable Object target, Method method, @Nullable Object[] arguments, @Nullable Class<?> targetClass, List<Object> interceptorsAndDynamicMethodMatchers) {
this.proxy = proxy;
this.target = target;
this.targetClass = targetClass;
this.method = BridgeMethodResolver.findBridgedMethod(method);
this.arguments = AopProxyUtils.adaptArgumentsIfNecessary(method, arguments);
this.interceptorsAndDynamicMethodMatchers = interceptorsAndDynamicMethodMatchers;
}ReflectiveMethodInvocation的proceed方法：
public Object proceed() throws Throwable {
// 递归调用出口，currentInterceptorIndex当前拦截器是最后一个拦截器
if (this.currentInterceptorIndex == this.interceptorsAndDynamicMethodMatchers.size() - 1) {
return this.invokeJoinpoint();
} else {
// 获取下一个拦截器
Object interceptorOrInterceptionAdvice = this.interceptorsAndDynamicMethodMatchers.get(++this.currentInterceptorIndex);
if (interceptorOrInterceptionAdvice instanceof InterceptorAndDynamicMethodMatcher) {
InterceptorAndDynamicMethodMatcher dm = (InterceptorAndDynamicMethodMatcher)interceptorOrInterceptionAdvice;
Class<?> targetClass = this.targetClass != null ? this.targetClass : this.method.getDeclaringClass();
return dm.methodMatcher.matches(this.method, targetClass, this.arguments) ? dm.interceptor.invoke(this) : this.proceed();
} else {
// 调用拦截器的invoke方法
return ((MethodInterceptor)interceptorOrInterceptionAdvice).invoke(this);
}
}
}org.springframework.aop.interceptor.ExposeInvocationInterceptor#invoke
public Object invoke(MethodInvocation mi) throws Throwable {
MethodInvocation oldInvocation = invocation.get();
invocation.set(mi);
try {
return mi.proceed();
}
finally {
invocation.set(oldInvocation);
}
}org.springframework.aop.aspectj.AspectJAfterThrowingAdvice#invoke 异常拦截器，当方法调用异常会被执行
public Object invoke(MethodInvocation mi) throws Throwable {
try {
return mi.proceed(); // 递归调用
}catch (Throwable ex) {
if (shouldInvokeOnThrowing(ex)) {
invokeAdviceMethod(getJoinPointMatch(), null, ex); // 捕捉到异常调用通知
}
throw ex;
}
}org.springframework.aop.framework.adapter.AfterReturningAdviceInterceptor#invoke 返回拦截器，方法执行失败，不会调用
public Object invoke(MethodInvocation mi) throws Throwable {
Object retVal = mi.proceed(); // 这里递归调用，失败程序终止不会继续执行
this.advice.afterReturning(retVal, mi.getMethod(), mi.getArguments(), mi.getThis());// 调用后置通知
return retVal;
}org.springframework.aop.aspectj.AspectJAfterAdvice#invoke 最终拦截器，总是执行
public Object invoke(MethodInvocation mi) throws Throwable {
try {
return mi.proceed();// 这里递归调用
}finally {
invokeAdviceMethod(getJoinPointMatch(), null, null); // 调用最终通知。finally总是执行
}
}org.springframework.aop.framework.adapter.MethodBeforeAdviceInterceptor#invoke 前置拦截器
public Object invoke(MethodInvocation mi) throws Throwable {
this.advice.before(mi.getMethod(), mi.getArguments(), mi.getThis()); // 调用前置通知
return mi.proceed(); // 这里递归调用
}2.4.4循环依赖下代理对象的创建
假设A依赖B，B依赖A，A先创建。
在A对象实例化之后，会将对象添加的三级缓存中，如下代码：
protected Object doCreateBean(final String beanName, final RootBeanDefinition mbd, final Object[]args)throws BeanCreationException {
//省略其他代码，只保留了关键代码
boolean earlySingletonExposure = (mbd.isSingleton() && this.allowCircularReferences &&
isSingletonCurrentlyInCreation(beanName));
if (earlySingletonExposure)
if (logger.isDebugEnabled()) {
logger.debug("Eagerly caching bean '" + beanName +11 "' to allow for resolving potential circular references");
}
//添加到三级缓存中
addSingletonFactory(beanName, new ObjectFactory
@Override
public Object getObject()throws BeansException {
//执行拓展的后置处理器
return getEarlyBeanReference(beanName, mbd, bean);
}
});
}
}在A属性赋值之前发现依赖B，创建B时候发现依赖A，再次获取A的时候可以从三级缓存中得到，并调用放入三级缓存的getObject()方法
如下代码：
protected Object getSingleton(String beanName, boolean allowEarlyReference) {
// singletonObjects 从一级缓存中获取对象
Object singletonObject = this.singletonObjects.get(beanName);
// 一级缓存未获取的对象 并且 isSingletonCurrentlyInCreation方法判断当前获取的对象是否在创建中，如果是说明产生了循环依赖，产生循环依赖才会，进入下面的代码.只有调用createBean才会将beanName放入正在创建的集合中。
if (singletonObject == null && this.isSingletonCurrentlyInCreation(beanName)) {
// earlySingletonObjects 从二级缓存中获取对象
singletonObject = this.earlySingletonObjects.get(beanName);
// 一级缓存未获取的对象 并且 allowEarlyReference参数表示是否允许循环依赖
if (singletonObject == null && allowEarlyReference) {
synchronized(this.singletonObjects) { // 类似于单例模式中的懒汉式
singletonObject = this.singletonObjects.get(beanName); // 一级缓存中拿值
if (singletonObject == null) {
singletonObject = this.earlySingletonObjects.get(beanName); // 二级缓存中拿值
if (singletonObject == null) {
// 三级缓存中获取创建代理对象的方法
ObjectFactory<?> singletonFactory = (ObjectFactory)this.singletonFactories.get(beanName);
if (singletonFactory != null) {
singletonObject = singletonFactory.getObject(); // 调用getObject创建对象
this.earlySingletonObjects.put(beanName, singletonObject); // 放入二级缓存中
this.singletonFactories.remove(beanName); // 移出三级缓存中的值
}
}
}
}
}
}
return singletonObject;
}getObject方法调用会调用getEarlyBeanReference方法：
protected Object getEarlyBeanReference(String beanName, RootBeanDefinition mbd, Object bean) {
Object exposedObject = bean;
//判读我们容器中是否有InstantiationAwareBeanPostProcessors类型的后置处理器
if (!mbd.isSynthetic() && hasInstantiationAwareBeanPostProcessors()) {
//获取我们所有的后置处理器
for (BeanPostProcessor bp : getBeanPostProcessors()) {
//判断我们的后置处理器是不是实现了SmartInstantiationAwareBeanPostProcessor接口
if (bp instanceof SmartInstantiationAwareBeanPostProcessor) {
//进行强制转换
SmartInstantiationAwareBeanPostProcessor ibp = (SmartInstantiationAwareBeanPostProcessor) bp;
//挨个调用SmartInstantiationAwareBeanPostProcessor的getEarlyBeanReference
exposedObject = ibp.getEarlyBeanReference(exposedObject, beanName);
}
}
}
return exposedObject;
}判断是否是InstantiationAwareBeanPostProcessors类型的后置处理器，是否实现SmartInstantiationAwareBeanPostProcessor接口，而@EnableAspectJAutoProxy注解就为添加AnnotationAwareAspectJAutoProxyCreator类的继承关系图：
AnnotationAwareAspectJAutoProxyCreator就是InstantiationAwareBeanPostProcessors类型的后置处理器，实现SmartInstantiationAwareBeanPostProcessor接口,

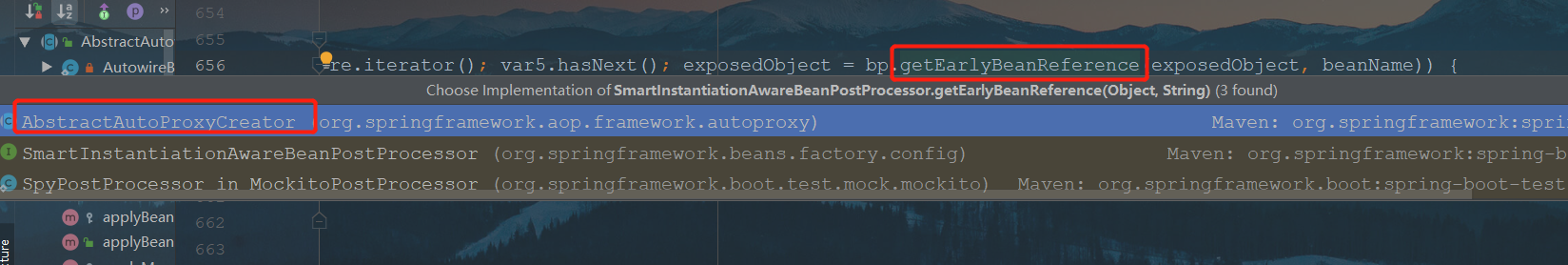

调用getEarlyBeanReference方法获取早期对象：
AnnotationAwareAspectJAutoProxyCreator没有实现getEarlyBeanReference方法，但是他继承了父类的getEarlyBeanReference：
public Object getEarlyBeanReference(Object bean, String beanName) {
Object cacheKey = this.getCacheKey(bean.getClass(), beanName);
this.earlyProxyReferences.put(cacheKey, bean);
return this.wrapIfNecessary(bean, beanName, cacheKey);
}看到wrapIfNecessary方法你就会发现你很熟悉，在2.2创建代理的过程中，用来判断生成代理对象的.
