一，SpringBoot内嵌tomcat原理解析
1.1 测试案例
在看内嵌tomcat的创建启动流程方法之前，先简单的介绍一下内嵌的tomcat，SpringBoot创建web应用时要引入spring-boot-starter-web，而spring-boot-starter-web这个依赖引入了tomcat依赖，SpringBoot自动装配的方式加载，使其它应用程序能够非常方便的将Tomcat嵌入到自身的应用来。
下面是从网络上找的一个自身的程序嵌入如何实现嵌入式Tomcat，达到和Springboot类似的效果：
第一步，新建一个maven项目，引入如下依赖：
<dependency>
<groupId>org.apache.tomcat.maven</groupId>
<artifactId>tomcat7-maven-plugin</artifactId>
<version>2.2</version>
</dependency>第二步，创建一个servlet提供服务：
public class TestServlet extends HttpServlet {
@Override
protected void doGet(HttpServletRequest req, HttpServletResponse response) throws ServletException, IOException {
response.setContentType("text/html");
response.setCharacterEncoding("UTF-8");
PrintWriter out = response.getWriter();
out.println("<h1>嵌入式tomcat</h1>");
}
}第三步，定义一个TestApplication类，主程序执行入口：
public class TestApplication {
public static void main(String[] args) throws LifecycleException {
Tomcat tomcat = new Tomcat(); // 创建一个tomcat
tomcat.setPort(8085);
tomcat.setHostname("localhost");
String classpath = System.getProperty("user.dir");//把目录的绝对的路径获取到
tomcat.addContext( "/", classpath);
Wrapper wrapper = tomcat.addServlet("/", "TestServlet", new TestServlet());
wrapper.addMapping("/test");
tomcat.start();// Tomcat跑起来
tomcat.getServer().await();//强制Tomcat server等待，避免main线程执行结束后关闭
}

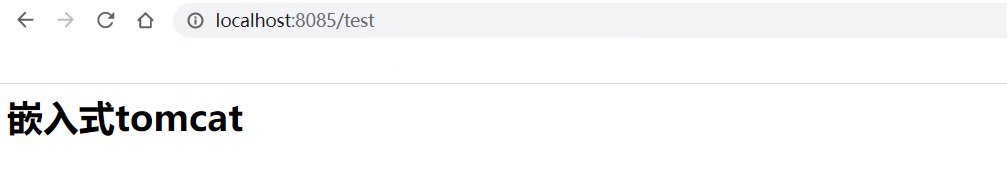

}运行TestApplication的main方法后，在浏览器中输入即可访问
好了，到这里就演示完毕了，我们目光回到onRefresh方法，看看SpringBoot时如何实现内嵌tomcat的启动的
1.2 流程跟进
SpringBoot项目的启动类。
@SpringBootApplication
public class TestApplication {
public static void main(String[] args) {
SpringApplication.run(TestApplication.class, args);
}
}跟进SpringApplication.run(TestApplication.class, args);方法：
public static ConfigurableApplicationContext run(Class<?> primarySource, String... args) {
return run(new Class[]{primarySource}, args);
}
public static ConfigurableApplicationContext run(Class<?>[] primarySources, String[] args) {
return (new SpringApplication(primarySources)).run(args);
}跟进SpringApplication的run方法：
public ConfigurableApplicationContext run(String... args) {
// 计时
StopWatch stopWatch = new StopWatch();
stopWatch.start();
DefaultBootstrapContext bootstrapContext = this.createBootstrapContext();
// 它是任何spring上下文的接口， 所以可以接收任何ApplicationContext实现
ConfigurableApplicationContext context = null;
this.configureHeadlessProperty();
// 去spring.factroies中读取了SpringApplicationRunListener的组件，EventPublishingRunListener就是用来发布事件或者运行监听器
SpringApplicationRunListeners listeners = this.getRunListeners(args);
// 发布ApplicationStartingEvent事件，启动事件监听
listeners.starting(bootstrapContext, this.mainApplicationClass);
try {
// 根据命令行参数实例化一个ApplicationArguments
ApplicationArguments applicationArguments = new DefaultApplicationArguments(args);
// 标记①，预初始化环境：读取环境变量，读取配置文件信息（基于监听器）
ConfigurableEnvironment environment = this.prepareEnvironment(listeners, bootstrapContext, applicationArguments);
// 忽略beaninfo的bean
this.configureIgnoreBeanInfo(environment);
// 打印Banner 横幅
Banner printedBanner = this.printBanner(environment);
// 标记②，根据webApplicationType创建Spring上下文
context = this.createApplicationContext();
context.setApplicationStartup(this.applicationStartup);
// 标记③，预初始化spring上下文
this.prepareContext(bootstrapContext, context, environment, listeners, applicationArguments, printedBanner);
// 加载spring ioc 容器相当重要,由于是使用AnnotationConfigServletWebServerApplicationContext启动的spring容器所以springboot对它做了扩展：加载自动配置类：invokeBeanFactoryPostProcessors ，创建servlet容器onRefresh
// 标记④，刷新容器
this.refreshContext(context);
this.afterRefresh(context, applicationArguments);
stopWatch.stop();
if (this.logStartupInfo) {
(new StartupInfoLogger(this.mainApplicationClass)).logStarted(this.getApplicationLog(), stopWatch);
}
listeners.started(context);
this.callRunners(context, applicationArguments);
} catch (Throwable var10) {
this.handleRunFailure(context, var10, listeners);
throw new IllegalStateException(var10);
}
try {
listeners.running(context);
return context;
} catch (Throwable var9) {
this.handleRunFailure(context, var9, (SpringApplicationRunListeners)null);
throw new IllegalStateException(var9);
}
}这里不看其它的，重点关注this.refreshContext(context);方法：接着调用org.springframework.context.support.AbstractApplicationContext#refresh父类的refresh方法：
public void refresh() throws BeansException, IllegalStateException {
synchronized(this.startupShutdownMonitor) {
StartupStep contextRefresh = this.applicationStartup.start("spring.context.refresh");
this.prepareRefresh();
ConfigurableListableBeanFactory beanFactory = this.obtainFreshBeanFactory();
this.prepareBeanFactory(beanFactory);
try {
this.postProcessBeanFactory(beanFactory);
StartupStep beanPostProcess = this.applicationStartup.start("spring.context.beans.post-process");
this.invokeBeanFactoryPostProcessors(beanFactory);
this.registerBeanPostProcessors(beanFactory);
beanPostProcess.end();
this.initMessageSource();
this.initApplicationEventMulticaster();
this.onRefresh(); // 关注
this.registerListeners();
this.finishBeanFactoryInitialization(beanFactory);
this.finishRefresh();
} catch (BeansException var10) {
if (this.logger.isWarnEnabled()) {
this.logger.warn("Exception encountered during context initialization - cancelling refresh attempt: " + var10);
}
this.destroyBeans();
this.cancelRefresh(var10);
throw var10;
} finally {
this.resetCommonCaches();
contextRefresh.end();
}
}
}跟进这个this.onRefresh();方法：
protected void onRefresh() {
super.onRefresh();
try {
this.createWebServer(); // 创建webServer
} catch (Throwable var2) {
throw new ApplicationContextException("Unable to start web server", var2);
}
}1.3 tomcat创建，启动和挂起流程
跟进this.createWebServer();方法：
private void createWebServer() {
WebServer webServer = this.webServer;
ServletContext servletContext = this.getServletContext();
// 判断webServer是否为空，为空的话就是内嵌tomcat的逻辑
if (webServer == null && servletContext == null) {
StartupStep createWebServer = this.getApplicationStartup().start("spring.boot.webserver.create");
// 获取ServletWebServerFactory，获取ServletWebServerFactory是ServletWebServerFactoryAutoConfiguration自动装配的，判断没有org.apache.catalina.startup.Tomcat的情况下
ServletWebServerFactory factory = this.getWebServerFactory();
createWebServer.tag("factory", factory.getClass().toString());
// 标记①，通过getWebServer方法获取的工厂类创建webServer，
// 标记②，tomcat启动后会回调getSelfInitializer方法
this.webServer = factory.getWebServer(new ServletContextInitializer[]{this.getSelfInitializer()});
createWebServer.end();
this.getBeanFactory().registerSingleton("webServerGracefulShutdown", new WebServerGracefulShutdownLifecycle(this.webServer));
this.getBeanFactory().registerSingleton("webServerStartStop", new WebServerStartStopLifecycle(this, this.webServer));
} else if (servletContext != null) {
try {
this.getSelfInitializer().onStartup(servletContext);
} catch (ServletException var5) {
throw new ApplicationContextException("Cannot initialize servlet context", var5);
}
}
this.initPropertySources();
}标记①，通过getWebServer方法获取的工厂类，跟进this.webServer = factory.getWebServer(new ServletContextInitializer[]{this.getSelfInitializer()});方法，这里会有很多的实现，我们选择org.springframework.boot.web.embedded.tomcat.TomcatServletWebServerFactory#getWebServer:
public WebServer getWebServer(ServletContextInitializer... initializers) {
if (this.disableMBeanRegistry) {
Registry.disableRegistry();
}
Tomcat tomcat = new Tomcat(); // 创建tomcat和测试案例一样
File baseDir = this.baseDirectory != null ? this.baseDirectory : this.createTempDir("tomcat");
tomcat.setBaseDir(baseDir.getAbsolutePath()); // 设置classpath和测试案例一样
Iterator var4 = this.serverLifecycleListeners.iterator();
while(var4.hasNext()) {
LifecycleListener listener = (LifecycleListener)var4.next();
tomcat.getServer().addLifecycleListener(listener);
}
Connector connector = new Connector(this.protocol);
connector.setThrowOnFailure(true);
tomcat.getService().addConnector(connector);
this.customizeConnector(connector);
tomcat.setConnector(connector);
tomcat.getHost().setAutoDeploy(false);
this.configureEngine(tomcat.getEngine());
Iterator var8 = this.additionalTomcatConnectors.iterator();
while(var8.hasNext()) {
Connector additionalConnector = (Connector)var8.next();
tomcat.getService().addConnector(additionalConnector);
}
// 现在先别看prepareContext方法，后面ServletContainerInitializer章节介绍
this.prepareContext(tomcat.getHost(), initializers);
return this.getTomcatWebServer(tomcat); // 启动tomcat
}启动tomcat，跟进this.getTomcatWebServer(tomcat)方法：
protected TomcatWebServer getTomcatWebServer(Tomcat tomcat) {
// 创建了TomcatWebServer
return new TomcatWebServer(tomcat, this.getPort() >= 0, this.getShutdown());
}public TomcatWebServer(Tomcat tomcat, boolean autoStart, Shutdown shutdown) {
this.monitor = new Object();
this.serviceConnectors = new HashMap();
Assert.notNull(tomcat, "Tomcat Server must not be null");
this.tomcat = tomcat;
this.autoStart = autoStart;
this.gracefulShutdown = shutdown == Shutdown.GRACEFUL ? new GracefulShutdown(tomcat) : null;
this.initialize(); // 关注
}继续跟进this.initialize();方法：
private void initialize() throws WebServerException {
logger.info("Tomcat initialized with port(s): " + this.getPortsDescription(false));
synchronized(this.monitor) {
try {
this.addInstanceIdToEngineName();
Context context = this.findContext();
context.addLifecycleListener((event) -> {
if (context.equals(event.getSource()) && "start".equals(event.getType())) {
this.removeServiceConnectors();
}
});
this.tomcat.start(); // 启动tomcat和测试案例一样
this.rethrowDeferredStartupExceptions();
try {
ContextBindings.bindClassLoader(context, context.getNamingToken(), this.getClass().getClassLoader());
} catch (NamingException var5) {
}
this.startDaemonAwaitThread(); // 挂起tomcat
} catch (Exception var6) {
this.stopSilently();
this.destroySilently();
throw new WebServerException("Unable to start embedded Tomcat", var6);
}
}
}挂起tomcat，跟进this.startDaemonAwaitThread(); 方法：
private void startDaemonAwaitThread() {
Thread awaitThread = new Thread("container-" + containerCounter.get()) {
public void run() {
TomcatWebServer.this.tomcat.getServer().await(); // 挂起tomcat和测试案例一样
}
};
awaitThread.setContextClassLoader(this.getClass().getClassLoader());
awaitThread.setDaemon(false);
awaitThread.start();
}1.4 ServletContainerInitializer的onStartup方法
我们在上面的流程中跟到通过TomcatServletWebServerFactory类的getWebServer方法创建tomcat中没有介绍getWebServer，现在介绍org.springframework.boot.web.embedded.tomcat.TomcatServletWebServerFactory#getWebServer:
public WebServer getWebServer(ServletContextInitializer... initializers) {
if (this.disableMBeanRegistry) {
Registry.disableRegistry();
}
Tomcat tomcat = new Tomcat(); // 创建tomcat和测试案例一样
File baseDir = this.baseDirectory != null ? this.baseDirectory : this.createTempDir("tomcat");
tomcat.setBaseDir(baseDir.getAbsolutePath()); // 设置classpath和测试案例一样
Iterator var4 = this.serverLifecycleListeners.iterator();
while(var4.hasNext()) {
LifecycleListener listener = (LifecycleListener)var4.next();
tomcat.getServer().addLifecycleListener(listener);
}
Connector connector = new Connector(this.protocol);
connector.setThrowOnFailure(true);
tomcat.getService().addConnector(connector);
this.customizeConnector(connector);
tomcat.setConnector(connector);
tomcat.getHost().setAutoDeploy(false);
this.configureEngine(tomcat.getEngine());
Iterator var8 = this.additionalTomcatConnectors.iterator();
while(var8.hasNext()) {
Connector additionalConnector = (Connector)var8.next();
tomcat.getService().addConnector(additionalConnector);
}
this.prepareContext(tomcat.getHost(), initializers); // 本次重点关注
return this.getTomcatWebServer(tomcat); // 启动tomcat
}我们回过头看看this.prepareContext(tomcat.getHost(), initializers); 方法：
protected void prepareContext(Host host, ServletContextInitializer[] initializers) {
File documentRoot = this.getValidDocumentRoot();
// 注意创建了TomcatEmbeddedContext
TomcatEmbeddedContext context = new TomcatEmbeddedContext();
if (documentRoot != null) {
context.setResources(new TomcatServletWebServerFactory.LoaderHidingResourceRoot(context));
}
// 省略部分代码
context.addLifecycleListener(new TomcatServletWebServerFactory.StaticResourceConfigurer(context));
// 合并
ServletContextInitializer[] initializersToUse = this.mergeInitializers(initializers);
host.addChild(context);
this.configureContext(context, initializersToUse); // 关注
this.postProcessContext(context);
}跟进this.configureContext(context, initializersToUse);方法：
protected void configureContext(Context context, ServletContextInitializer[] initializers) {
// 创建了TomcatStarter并把ServletContextInitializer封装为一个容器初始化器
TomcatStarter starter = new TomcatStarter(initializers);
if (context instanceof TomcatEmbeddedContext) {
TomcatEmbeddedContext embeddedContext = (TomcatEmbeddedContext)context;
embeddedContext.setStarter(starter);
embeddedContext.setFailCtxIfServletStartFails(true);
}
// 给TomcatEmbeddedContext加入一个容器初始化器TomcatStarter
context.addServletContainerInitializer(starter, NO_CLASSES);
// 省略部分代码
}什么时候执行注册的容器初始化器？TomcatEmbeddedContext继承了StandardContext，而StandardContext继承了LifecycleBase类，所以tomcat启动时会回调startInternal方法，而在startInternal方法中就有一段调用ServletContainerInitializer的onStartup方法：
// 遍历initializers
Iterator var27 = this.initializers.entrySet().iterator();
while(var27.hasNext()) {
Entry entry = (Entry)var27.next();
try {
// 回调ServletContainerInitializer的onStartup方法
((ServletContainerInitializer)entry.getKey()).onStartup((Set)entry.getValue(), this.getServletContext());
} catch (ServletException var22) {
log.error(sm.getString("standardContext.sciFail"), var22);
ok = false;
break;
}
}跟进this.getServletContext()方法，创建了ServletContext
public ServletContext getServletContext() {
if (this.context == null) {
this.context = new ApplicationContext(this);
if (this.altDDName != null) {
this.context.setAttribute("org.apache.catalina.deploy.alt_dd", this.altDDName);
}
}
return this.context.getFacade();
}标记②，我们回过头tomcat启动后会回调getSelfInitializer方法：
private ServletContextInitializer getSelfInitializer() {
// 此处this::selfInitialize返回的是函数式方法实现，类似匿名内部类，而不是直接调用,此处会返回一个ServletContextInitialzer的实现。所以在创建tomcatServer之前没有调用selfInitialize，而是返回一个匿名内部类的对象，然后进入getWebServer方法。
// 而后续在prepareContext（）方法里，会把ServletContextInitialzer包装为容器初始化器，tomcat.start启动时会把调用ServletContextInitialzer的onstartup方法，而它的onstartup方法就是selfInitialize方法，
return this::selfInitialize;
}
private void selfInitialize(ServletContext servletContext) throws ServletException {
this.prepareWebApplicationContext(servletContext);
// 注册Servlet作用域application到BeanFactory中，前面研究springboot启动时注入过session+request
this.registerApplicationScope(servletContext);
// 注册servlet环境的bean到BeanFactory中
WebApplicationContextUtils.registerEnvironmentBeans(this.getBeanFactory(), servletContext);
// 标记③
Iterator var2 = this.getServletContextInitializerBeans().iterator();
while(var2.hasNext()) {
// 将DispatchServlet加入servletContext，后面有分析该过程
ServletContextInitializer beans = (ServletContextInitializer)var2.next();
// 标记④，调用onStartup方法
beans.onStartup(servletContext);
}

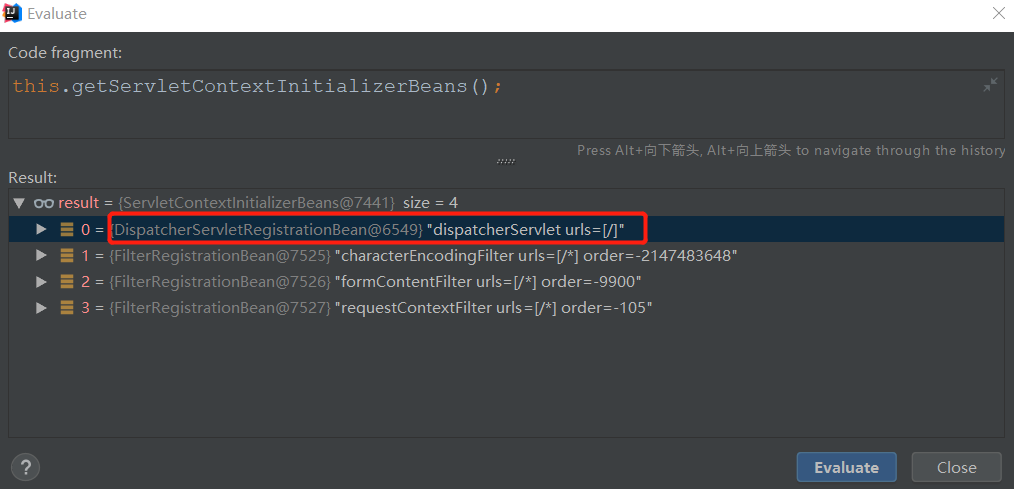

}标记③，调试一下看看this.getServletContextInitializerBeans()获取的什么？
以上图DispatcherServletRegistrationBean为例，先看一下DispatcherServletRegistrationBean是通过DispatcherServletAutoConfiguration类自动装配到IOC容器的
@Conditional({DispatcherServletAutoConfiguration.DispatcherServletRegistrationCondition.class})
@ConditionalOnClass({ServletRegistration.class})
@EnableConfigurationProperties({WebMvcProperties.class})
@Import({DispatcherServletAutoConfiguration.DispatcherServletConfiguration.class})
protected static class DispatcherServletRegistrationConfiguration {
protected DispatcherServletRegistrationConfiguration() {
}
@Bean(name = {"dispatcherServletRegistration"})
@ConditionalOnBean(value = {DispatcherServlet.class},name = {"dispatcherServlet"})
public DispatcherServletRegistrationBean dispatcherServletRegistration(DispatcherServlet dispatcherServlet, WebMvcProperties webMvcProperties, ObjectProvider<MultipartConfigElement> multipartConfig) {
// 创建了DispatcherServletRegistrationBean，传入了dispatcherServlet和 /
DispatcherServletRegistrationBean registration = new DispatcherServletRegistrationBean(dispatcherServlet, webMvcProperties.getServlet().getPath());
registration.setName("dispatcherServlet");
registration.setLoadOnStartup(webMvcProperties.getServlet().getLoadOnStartup());
multipartConfig.ifAvailable(registration::setMultipartConfig);
return registration;
}
}然后看一看DispatcherServletRegistrationBean的继承关系：

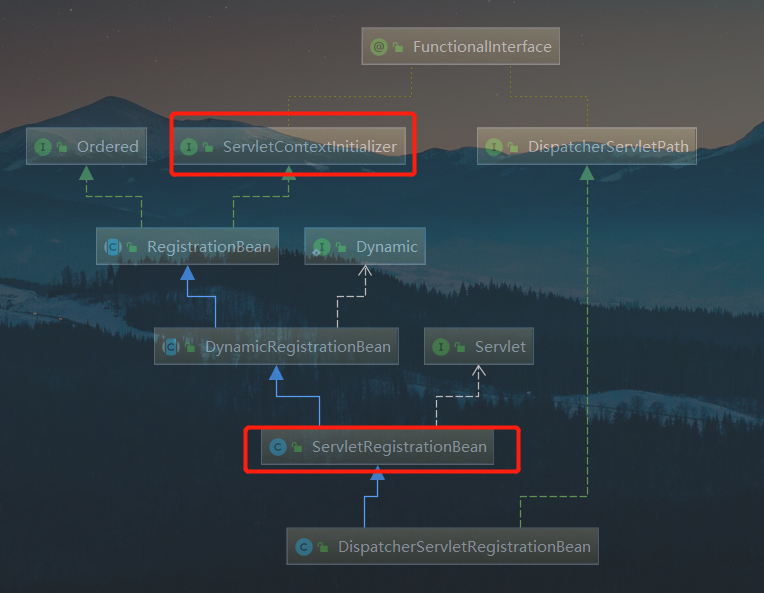

我们可以看到DispatcherServletRegistrationBean继承了ServletRegistrationBean，也实现了ServletContextInitializer接口，
public class DispatcherServletRegistrationBean extends ServletRegistrationBean<DispatcherServlet> implements DispatcherServletPath {
private final String path;
public DispatcherServletRegistrationBean(DispatcherServlet servlet, String path) {
super(servlet, new String[0]); // 调用父类的构造方法
Assert.notNull(path, "Path must not be null");
this.path = path;
super.addUrlMappings(new String[]{this.getServletUrlMapping()});
}
}标记④，调用onStartup方法，DispatcherServletRegistrationBean并没有重写onStartup，我们继续跟进ServletContextInitializer的beans.onStartup(servletContext);方法：
public final void onStartup(ServletContext servletContext) throws ServletException {
String description = this.getDescription();
if (!this.isEnabled()) {
logger.info(StringUtils.capitalize(description) + " was not registered (disabled)");
} else {
this.register(description, servletContext);
}
}继续跟进this.register(description, servletContext);方法：
protected final void register(String description, ServletContext servletContext) {
D registration = this.addRegistration(description, servletContext);
if (registration == null) {
logger.info(StringUtils.capitalize(description) + " was not registered (possibly already registered?)");
} else {
this.configure(registration);
}
}继续跟进this.addRegistration(description, servletContext);方法：
protected Dynamic addRegistration(String description, ServletContext servletContext) {
String name = this.getServletName();
// name和servlet是通过创建了DispatcherServletRegistrationBean，传入了dispatcherServlet
return servletContext.addServlet(name, this.servlet);
}
