一，spring整合mybatis源码解析
mybatis单独使用的简单例子：
public class App {
public static void main(String[] args) {
String resource = "mybatis‐config.xml";
Reader reader;
try {
//将XML配置文件构建为Configuration配置类
reader = Resources.getResourceAsReader(resource);
// 通过加载配置文件流构建一个SqlSessionFactory DefaultSqlSessionFactory
SqlSessionFactory sqlSessionFactory = new SqlSessionFactoryBuilder().build(reader);
// 数据源 执行器 DefaultSqlSession
SqlSession session = sqlSessionFactory.openSession();
try {
// 执行查询 底层执行jdbc
//User user = (User)session.selectOne("com.tuling.mapper.selectById", 1);
UserMapper mapper = session.getMapper(UserMapper.class);
System.out.println(mapper.getClass());
User user = mapper.selectById(1L);
System.out.println(user.getUserName());
} catch (Exception e) {
e.printStackTrace();
}finally {
session.close();
}
} catch (IOException e) {
e.printStackTrace();
}
}
}spring整合mybatis配置例子：
@Configuration
@MapperScan(basePackages = "com.asiainfo.kf.mapper.two",sqlSessionFactoryRef = "twoSqlSessionFactory")
public class TwoDataSourceConfig {
@Bean("twoDateSource")
@ConfigurationProperties(prefix = "spring.datasource.two")
public DataSource oneDateSource(){
return new DruidDataSource();
}
@Bean("twoSqlSessionFactory")
public SqlSessionFactory twoSqlSessionFactory(@Qualifier("twoDateSource") DataSource dataSource) throws Exception {
SqlSessionFactoryBean bean = new SqlSessionFactoryBean();
bean.setDataSource(dataSource);
bean.setMapperLocations(new PathMatchingResourcePatternResolver().getResources("classpath:mapper/two/**/*.xml"));
return bean.getObject();
}
}1.1sqlSession的创建
对比这两个简单配置mybatis单独使用是通过SqlSessionFactoryBuilder的build()方法创建SqlSessionFactory 的：
SqlSessionFactory sqlMapper = new SqlSessionFactoryBuilder().build(reader);spring整合mybatis是通过SqlSessionFactoryBean的getObject()方法创建SqlSessionFactory 的:
@Bean("twoSqlSessionFactory")
public SqlSessionFactory twoSqlSessionFactory(@Qualifier("twoDateSource") DataSource dataSource) throws Exception {
SqlSessionFactoryBean bean = new SqlSessionFactoryBean();
bean.setDataSource(dataSource);
bean.setMapperLocations(new PathMatchingResourcePatternResolver().getResources("classpath:mapper/two/**/*.xml"));
return bean.getObject();
}所以spring整合mybatis关键就在于SqlSessionFactoryBean，SqlSessionFactoryBean的部分源码和实现的接口：
public class SqlSessionFactoryBean implements FactoryBean<SqlSessionFactory>, InitializingBean, ApplicationListener<ApplicationEvent> {
private static final Logger LOGGER = LoggerFactory.getLogger(SqlSessionFactoryBean.class);
private static final ResourcePatternResolver RESOURCE_PATTERN_RESOLVER = new PathMatchingResourcePatternResolver();
private static final MetadataReaderFactory METADATA_READER_FACTORY = new CachingMetadataReaderFactory();
private Resource configLocation; // mybatis的核心配置文件
private Configuration configuration; // 配置类
private Resource[] mapperLocations; // mapper配置文件所在位置
private DataSource dataSource; // 数据源
private TransactionFactory transactionFactory;
private Properties configurationProperties; // 类比于mybatis核心配置文件的Properties
// 创建SqlSessionFactory的
private SqlSessionFactoryBuilder sqlSessionFactoryBuilder = new SqlSessionFactoryBuilder();
// SqlSessionFactory
private SqlSessionFactory sqlSessionFactory;
// 类比于mybatis核心配置文件的environment
private String environment = SqlSessionFactoryBean.class.getSimpleName();
private boolean failFast;
private Interceptor[] plugins; // 类比于mybatis核心配置文件的plugins
private TypeHandler<?>[] typeHandlers; // 类比于mybatis核心配置文件的typeHandlers
private String typeHandlersPackage;
private Class<? extends TypeHandler> defaultEnumTypeHandler;
private Class<?>[] typeAliases; // 类比于mybatis核心配置文件的typeAliases
private String typeAliasesPackage;
private Class<?> typeAliasesSuperType;
private LanguageDriver[] scriptingLanguageDrivers;
private Class<? extends LanguageDriver> defaultScriptingLanguageDriver;
private DatabaseIdProvider databaseIdProvider;
private Class<? extends VFS> vfs;
private Cache cache; // 类比于mybatis核心配置文件的cache
private ObjectFactory objectFactory;
private ObjectWrapperFactory objectWrapperFactory;
}①，由上源码可以看出SqlSessionFactoryBean实现了FactoryBean接口，查看SqlSessionFactoryBean的getObject()方法：
public SqlSessionFactory getObject() throws Exception {
if (this.sqlSessionFactory == null) {
this.afterPropertiesSet();
}
return this.sqlSessionFactory; // 最终返回的是sqlSessionFactory
} FactoryBean接口的作用是在创建Bean的是通过getObject()方法返回的Bean，这也是为什么我写的spring整合mybatis的配置中通过SqlSessionFactoryBean的getObject()方法返回SqlSessionFactory，而有时候我们会看到配置的没有调用getObject()方法直接返回SqlSessionFactoryBean，就是因为SqlSessionFactoryBean实现了FactoryBean接口，就算我们不手动getObject()方法，Spring也会自动调用getObject()方法创建SqlSessionFactory的。
②，由上源码可知SqlSessionFactoryBean还实现了InitializingBean接口，在spring中实现InitializingBean接口的会在初始化的时候调用afterPropertiesSet()方法，跟进SqlSessionFactoryBean的afterPropertiesSet()方法：
public void afterPropertiesSet() throws Exception {
// this.dataSource和this.sqlSessionFactoryBuilder属性不能null
Assert.notNull(this.dataSource, "Property 'dataSource' is required");
Assert.notNull(this.sqlSessionFactoryBuilder, "Property 'sqlSessionFactoryBuilder' is required");
// configuration和configLocation属性不能同时设置
Assert.state(this.configuration == null && this.configLocation == null || this.configuration == null || this.configLocation == null, "Property 'configuration' and 'configLocation' can not specified with together");
// 通过buildSqlSessionFactory方法创建SqlSessionFactory，赋值给成员变量this.sqlSessionFactory
// SqlSessionFactoryBean实现了FactoryBean接口，FactoryBean接口的作用是在创建Bean的是通过getObject()方法返回，getObject()方法返的就是this.sqlSessionFactory成员变量
this.sqlSessionFactory = this.buildSqlSessionFactory();
}继续跟进 this.buildSqlSessionFactory();方法：
protected SqlSessionFactory buildSqlSessionFactory() throws Exception {
// XMLConfigBuilder这个类用于解析mybatis核心配置文件
XMLConfigBuilder xmlConfigBuilder = null;
Configuration targetConfiguration;
if (this.configuration != null) { // spring整合mybatis的配置时传入了configuration
targetConfiguration = this.configuration;
if (targetConfiguration.getVariables() == null) {
targetConfiguration.setVariables(this.configurationProperties);
} else if (this.configurationProperties != null) {
targetConfiguration.getVariables().putAll(this.configurationProperties);
}
} else if (this.configLocation != null) { // spring整合mybatis的配置时传入了 mybatis核心配置文件
xmlConfigBuilder = new XMLConfigBuilder(this.configLocation.getInputStream(), (String)null, this.configurationProperties); // 解析mybatis核心配置文件
targetConfiguration = xmlConfigBuilder.getConfiguration();
} else { // spring整合mybatis的配置时configuration和configLocation属性都没设置
LOGGER.debug(() -> {
return "Property 'configuration' or 'configLocation' not specified, using default MyBatis Configuration";
});
targetConfiguration = new Configuration(); // 自己创建配置类
Optional.ofNullable(this.configurationProperties).ifPresent(targetConfiguration::setVariables);
}
Optional.ofNullable(this.objectFactory).ifPresent(targetConfiguration::setObjectFactory);
Optional.ofNullable(this.objectWrapperFactory).ifPresent(targetConfiguration::setObjectWrapperFactory);
Optional.ofNullable(this.vfs).ifPresent(targetConfiguration::setVfsImpl);
Stream var10000;
// 整合typeAliasesPackage配置
if (StringUtils.hasLength(this.typeAliasesPackage)) {
var10000 = this.scanClasses(this.typeAliasesPackage, this.typeAliasesSuperType).stream().filter((clazz) -> {
return !clazz.isAnonymousClass();
}).filter((clazz) -> {
return !clazz.isInterface();
}).filter((clazz) -> {
return !clazz.isMemberClass();
});
TypeAliasRegistry var10001 = targetConfiguration.getTypeAliasRegistry();
var10000.forEach(var10001::registerAlias);
}
if (!ObjectUtils.isEmpty(this.typeAliases)) {
Stream.of(this.typeAliases).forEach((typeAlias) -> {
targetConfiguration.getTypeAliasRegistry().registerAlias(typeAlias);
LOGGER.debug(() -> {
return "Registered type alias: '" + typeAlias + "'";
});
});
}
// 整合plugins配置
if (!ObjectUtils.isEmpty(this.plugins)) {
Stream.of(this.plugins).forEach((plugin) -> {
targetConfiguration.addInterceptor(plugin);
LOGGER.debug(() -> {
return "Registered plugin: '" + plugin + "'";
});
});
}
// 整合typeHandlersPackage配置
if (StringUtils.hasLength(this.typeHandlersPackage)) {
var10000 = this.scanClasses(this.typeHandlersPackage, TypeHandler.class).stream().filter((clazz) -> {
return !clazz.isAnonymousClass();
}).filter((clazz) -> {
return !clazz.isInterface();
}).filter((clazz) -> {
return !Modifier.isAbstract(clazz.getModifiers());
});
TypeHandlerRegistry var24 = targetConfiguration.getTypeHandlerRegistry();
var10000.forEach(var24::register);
}
if (!ObjectUtils.isEmpty(this.typeHandlers)) {
Stream.of(this.typeHandlers).forEach((typeHandler) -> {
targetConfiguration.getTypeHandlerRegistry().register(typeHandler);
LOGGER.debug(() -> {
return "Registered type handler: '" + typeHandler + "'";
});
});
}
targetConfiguration.setDefaultEnumTypeHandler(this.defaultEnumTypeHandler);
if (!ObjectUtils.isEmpty(this.scriptingLanguageDrivers)) {
Stream.of(this.scriptingLanguageDrivers).forEach((languageDriver) -> {
targetConfiguration.getLanguageRegistry().register(languageDriver);
LOGGER.debug(() -> {
return "Registered scripting language driver: '" + languageDriver + "'";
});
});
}
Optional.ofNullable(this.defaultScriptingLanguageDriver).ifPresent(targetConfiguration::setDefaultScriptingLanguage);
if (this.databaseIdProvider != null) {
try {
targetConfiguration.setDatabaseId(this.databaseIdProvider.getDatabaseId(this.dataSource));
} catch (SQLException var23) {
throw new NestedIOException("Failed getting a databaseId", var23);
}
}
Optional.ofNullable(this.cache).ifPresent(targetConfiguration::addCache);
if (xmlConfigBuilder != null) {
try {
xmlConfigBuilder.parse();
LOGGER.debug(() -> {
return "Parsed configuration file: '" + this.configLocation + "'";
});
} catch (Exception var21) {
throw new NestedIOException("Failed to parse config resource: " + this.configLocation, var21);
} finally {
ErrorContext.instance().reset();
}
}
// 整合环境配置
targetConfiguration.setEnvironment(new Environment(this.environment, (TransactionFactory)(this.transactionFactory == null ? new SpringManagedTransactionFactory() : this.transactionFactory), this.dataSource));
// 解析Mapper.xml
if (this.mapperLocations != null) {
if (this.mapperLocations.length == 0) {
LOGGER.warn(() -> {
return "Property 'mapperLocations' was specified but matching resources are not found.";
});
} else {
Resource[] var3 = this.mapperLocations;
int var4 = var3.length;
for(int var5 = 0; var5 < var4; ++var5) {
Resource mapperLocation = var3[var5];
if (mapperLocation != null) {
try {
XMLMapperBuilder xmlMapperBuilder = new XMLMapperBuilder(mapperLocation.getInputStream(), targetConfiguration, mapperLocation.toString(), targetConfiguration.getSqlFragments());
xmlMapperBuilder.parse();
} catch (Exception var19) {
throw new NestedIOException("Failed to parse mapping resource: '" + mapperLocation + "'", var19);
} finally {
ErrorContext.instance().reset();
}
LOGGER.debug(() -> {
return "Parsed mapper file: '" + mapperLocation + "'";
});
}
}
}
} else {
LOGGER.debug(() -> {
return "Property 'mapperLocations' was not specified.";
});
}
// 创建sqlSessionFactory
return this.sqlSessionFactoryBuilder.build(targetConfiguration);
}跟进this.sqlSessionFactoryBuilder.build(targetConfiguration);方法：
public SqlSessionFactory build(Configuration config) {
return new DefaultSqlSessionFactory(config); // 最终创建的DefaultSqlSessionFactory
}1.2mapper代理的创建
继续对比最开始的mybatis单独使用的简单例子和spring整合mybatis配置例子，spring整合mybatis想要创建代理对象，在1.1章节中已经创建好了`SqlSessionFactory`，我们只需要通过`SqlSession session = sqlSessionFactory.openSession();`获取SqlSession，然后通过SqlSession的getMapper方法就能创建代理对象。
spring整合mybatis想要创建代理对象是通过@MapperScan注解实现的，查看@MapperScan注解源码：
@Retention(RetentionPolicy.RUNTIME)
@Target({ElementType.TYPE})
@Documented
@Import({MapperScannerRegistrar.class})
@Repeatable(MapperScans.class)
public @interface MapperScan {
String[] value() default {};
String[] basePackages() default {};
Class<?>[] basePackageClasses() default {};
Class<? extends BeanNameGenerator> nameGenerator() default BeanNameGenerator.class;
Class<? extends Annotation> annotationClass() default Annotation.class;
Class<?> markerInterface() default Class.class;
String sqlSessionTemplateRef() default "";
String sqlSessionFactoryRef() default "";
Class<? extends MapperFactoryBean> factoryBean() default MapperFactoryBean.class;
String lazyInitialization() default "";
}MapperScan注解上通过@Import({MapperScannerRegistrar.class})导入了MapperScannerRegistrar类：
public class MapperScannerRegistrar implements ImportBeanDefinitionRegistrar, ResourceLoaderAware {
}MapperScannerRegistrar实现了ImportBeanDefinitionRegistrar接口，ImportBeanDefinitionRegistrar的registerBeanDefinitions方法会为IOC容器中注入Bean，查看MapperScannerRegistrard的registerBeanDefinitions方法：
void registerBeanDefinitions(AnnotationMetadata annoMeta, AnnotationAttributes annoAttrs, BeanDefinitionRegistry registry, String beanName) {
// 重点注册了一个MapperScannerConfigurer类
BeanDefinitionBuilder builder = BeanDefinitionBuilder.genericBeanDefinition(MapperScannerConfigurer.class);
// ，，，，省略部分代码
registry.registerBeanDefinition(beanName, builder.getBeanDefinition());
}查看MapperScannerConfigurer类：
public class MapperScannerConfigurer implements BeanDefinitionRegistryPostProcessor, InitializingBean, ApplicationContextAware, BeanNameAware {发现MapperScannerConfigurer类实现了BeanDefinitionRegistryPostProcessor接口，BeanDefinitionRegistryPostProcessor接口继承了BeanFactoryPostProcessor接口，BeanFactoryPostProcessor是Spring重要的扩展点之一，springIOC的加载流程中，会调用BeanFactoryPostProcessor接口postProcessBeanDefinitionRegistry方法：
public void postProcessBeanDefinitionRegistry(BeanDefinitionRegistry registry) {
if (this.processPropertyPlaceHolders) {
this.processPropertyPlaceHolders();
}
// 创建ClassPathMapperScanner
ClassPathMapperScanner scanner = new ClassPathMapperScanner(registry);
scanner.setAddToConfig(this.addToConfig);
scanner.setAnnotationClass(this.annotationClass);
scanner.setMarkerInterface(this.markerInterface);
scanner.setSqlSessionFactory(this.sqlSessionFactory);
scanner.setSqlSessionTemplate(this.sqlSessionTemplate);
scanner.setSqlSessionFactoryBeanName(this.sqlSessionFactoryBeanName);
scanner.setSqlSessionTemplateBeanName(this.sqlSessionTemplateBeanName);
scanner.setResourceLoader(this.applicationContext);
scanner.setBeanNameGenerator(this.nameGenerator);
scanner.setMapperFactoryBeanClass(this.mapperFactoryBeanClass);
if (StringUtils.hasText(this.lazyInitialization)) {
scanner.setLazyInitialization(Boolean.valueOf(this.lazyInitialization));
}
scanner.registerFilters();
// 调用scan方法
scanner.scan(StringUtils.tokenizeToStringArray(this.basePackage, ",; \t\n"));
}跟进scanner.scan(StringUtils.tokenizeToStringArray(this.basePackage, ",; \t\n"));方法：
public int scan(String... basePackages) {
int beanCountAtScanStart = this.registry.getBeanDefinitionCount();
this.doScan(basePackages); // 继续
if (this.includeAnnotationConfig) {
AnnotationConfigUtils.registerAnnotationConfigProcessors(this.registry);
}
return this.registry.getBeanDefinitionCount() - beanCountAtScanStart;
}继续跟进this.doScan(basePackages);方法：
public Set<BeanDefinitionHolder> doScan(String... basePackages) {
// 调用父类ClassPathBeanDefinitionScanner的doScan方法
Set<BeanDefinitionHolder> beanDefinitions = super.doScan(basePackages);
if (beanDefinitions.isEmpty()) {
LOGGER.warn(() -> {
return "No MyBatis mapper was found in '" + Arrays.toString(basePackages) + "' package. Please check your configuration.";
});
} else {
this.processBeanDefinitions(beanDefinitions);
}
return beanDefinitions;
}ClassPathBeanDefinitionScanner的doScan方法：
protected Set<BeanDefinitionHolder> doScan(String... basePackages) {
Assert.notEmpty(basePackages, "At least one base package must be specified");
Set<BeanDefinitionHolder> beanDefinitions = new LinkedHashSet();
String[] var3 = basePackages;
int var4 = basePackages.length;
// 循环处理basePackages
for(int var5 = 0; var5 < var4; ++var5) {
String basePackage = var3[var5];
// 根据包名找到符合条件的BeanDefinition集合
Set<BeanDefinition> candidates = this.findCandidateComponents(basePackage);
Iterator var8 = candidates.iterator();
while(var8.hasNext()) {
BeanDefinition candidate = (BeanDefinition)var8.next();
ScopeMetadata scopeMetadata = this.scopeMetadataResolver.resolveScopeMetadata(candidate);
candidate.setScope(scopeMetadata.getScopeName());
String beanName = this.beanNameGenerator.generateBeanName(candidate, this.registry);
//由findCandidateComponents内部可知，这里的candidate是ScannedGenericBeanDefinition
//而ScannedGenericBeanDefinition是AbstractBeanDefinition和AnnotatedBeanDefinition的之类
//所以下面的两个if都会进入
if (candidate instanceof AbstractBeanDefinition) {
//内部会设置默认值
this.postProcessBeanDefinition((AbstractBeanDefinition)candidate, beanName);
}
if (candidate instanceof AnnotatedBeanDefinition) {
//如果是AnnotatedBeanDefinition，还会再设置一次值
AnnotationConfigUtils.processCommonDefinitionAnnotations((AnnotatedBeanDefinition)candidate);
}
if (this.checkCandidate(beanName, candidate)) { // 检查是否符合要求，有没有被排除，有没有是实体类等等
BeanDefinitionHolder definitionHolder = new BeanDefinitionHolder(candidate, beanName);
definitionHolder = AnnotationConfigUtils.applyScopedProxyMode(scopeMetadata, definitionHolder, this.registry);
beanDefinitions.add(definitionHolder);
this.registerBeanDefinition(definitionHolder, this.registry); // 生成bean定义
}
}
}
return beanDefinitions;
}根据包名找到符合条件的BeanDefinition集合，跟进Set<BeanDefinition> candidates = this.findCandidateComponents(basePackage);方法：
public Set<BeanDefinition> findCandidateComponents(String basePackage) {
LinkedHashSet candidates = new LinkedHashSet();
try {
String packageSearchPath = "classpath*:" + this.resolveBasePackage(basePackage) + '/' + this.resourcePattern;
//包下class对象都会解析成对应的resource对象文件对象
Resource[] resources = this.resourcePatternResolver.getResources(packageSearchPath);
boolean traceEnabled = this.logger.isTraceEnabled();
boolean debugEnabled = this.logger.isDebugEnabled();
Resource[] var7 = resources;
int var8 = resources.length;
//遍历所有文件对象数组
for(int var9 = 0; var9 < var8; ++var9) {
Resource resource = var7[var9];
if (traceEnabled) {
this.logger.trace("Scanning " + resource);
}
if (resource.isReadable()) {
try {
//利用ASM技术把文件对象解析成元数据信息
MetadataReader metadataReader = this.metadataReaderFactory.getMetadataReader(resource);
//解析是否包含Component注解，以及剔除excludeFilters配置的，includeFilters匹配则成功（new AnnotationTypeFilter(Component.class)），匹配通过继续筛选是否有Condition条件
if (this.isCandidateComponent(metadataReader)) {
ScannedGenericBeanDefinition sbd = new ScannedGenericBeanDefinition(metadataReader);
sbd.setResource(resource);
sbd.setSource(resource);
//判断当前对象是否符合
if (this.isCandidateComponent((AnnotatedBeanDefinition)sbd)) {
if (debugEnabled) {
this.logger.debug("Identified candidate component class: " + resource);
}
//满足以上条件才能成为候选beanDefinition即真正的beandefinition
candidates.add(sbd);
} else if (debugEnabled) {
this.logger.debug("Ignored because not a concrete top-level class: " + resource);
}
} else if (traceEnabled) {
this.logger.trace("Ignored because not matching any filter: " + resource);
}
} catch (Throwable var13) {
throw new BeanDefinitionStoreException("Failed to read candidate component class: " + resource, var13);
}
} else if (traceEnabled) {
this.logger.trace("Ignored because not readable: " + resource);
}
}
return candidates;
} catch (IOException var14) {
throw new BeanDefinitionStoreException("I/O failure during classpath scanning", var14);
}
}

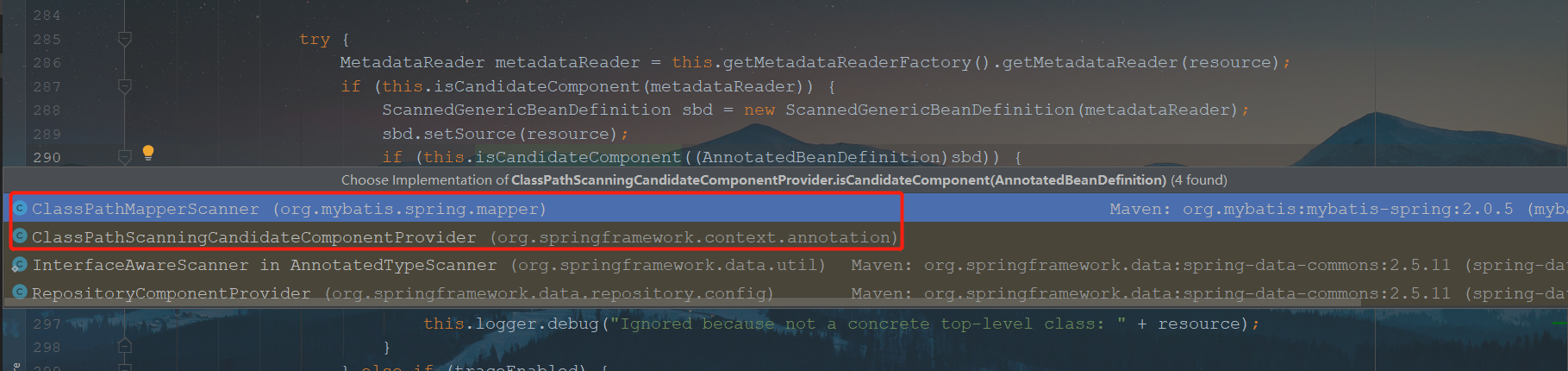

跟进ClassPathMapperScanner的isCandidateComponent方法：判断的必须是接口并且顶级的
protected boolean isCandidateComponent(AnnotatedBeanDefinition beanDefinition) {
return beanDefinition.getMetadata().isInterface() && beanDefinition.getMetadata().isIndependent();
}如果跟进的是ClassPathScanningCandidateComponentProvider的isCandidateComponent方法：判断当前对象不能是接口
protected boolean isCandidateComponent(AnnotatedBeanDefinition beanDefinition) {
AnnotationMetadata metadata = beanDefinition.getMetadata();
return metadata.isIndependent() && (metadata.isConcrete() || metadata.isAbstract() && metadata.hasAnnotatedMethods(Lookup.class.getName()));
} spring整合mybatis通过ClassPathMapperScanner重写isCandidateComponent方法，避开了Spring不能注册接口成为Bean定义的规则。
回到ClassPathMapperScannerd的doScan方法，看看扫描后为BeanDefinitio又做了什么？
public Set<BeanDefinitionHolder> doScan(String... basePackages) {
// 调用父类ClassPathBeanDefinitionScanner的doScan方法
Set<BeanDefinitionHolder> beanDefinitions = super.doScan(basePackages);
if (beanDefinitions.isEmpty()) {
LOGGER.warn(() -> {
return "No MyBatis mapper was found in '" + Arrays.toString(basePackages) + "' package. Please check your configuration.";
});
} else {
this.processBeanDefinitions(beanDefinitions);
}
}跟进 this.processBeanDefinitions(beanDefinitions);方法：
private void processBeanDefinitions(Set<BeanDefinitionHolder> beanDefinitions) {
GenericBeanDefinition definition;
// 循环
for(Iterator var3 = beanDefinitions.iterator(); var3.hasNext(); definition.setLazyInit(this.lazyInitialization)) {
BeanDefinitionHolder holder = (BeanDefinitionHolder)var3.next();
definition = (GenericBeanDefinition)holder.getBeanDefinition();
String beanClassName = definition.getBeanClassName();
LOGGER.debug(() -> {
return "Creating MapperFactoryBean with name '" + holder.getBeanName() + "' and '" + beanClassName + "' mapperInterface";
});
//
definition.getConstructorArgumentValues().addGenericArgumentValue(beanClassName);
// 偷天换日
definition.setBeanClass(this.mapperFactoryBeanClass);
definition.getPropertyValues().add("addToConfig", this.addToConfig);
boolean explicitFactoryUsed = false;
if (StringUtils.hasText(this.sqlSessionFactoryBeanName)) {
definition.getPropertyValues().add("sqlSessionFactory", new RuntimeBeanReference(this.sqlSessionFactoryBeanName));
explicitFactoryUsed = true;
} else if (this.sqlSessionFactory != null) {
definition.getPropertyValues().add("sqlSessionFactory", this.sqlSessionFactory);
explicitFactoryUsed = true;
}
if (StringUtils.hasText(this.sqlSessionTemplateBeanName)) {
if (explicitFactoryUsed) {
LOGGER.warn(() -> {
return "Cannot use both: sqlSessionTemplate and sqlSessionFactory together. sqlSessionFactory is ignored.";
});
}
definition.getPropertyValues().add("sqlSessionTemplate", new RuntimeBeanReference(this.sqlSessionTemplateBeanName));
explicitFactoryUsed = true;
} else if (this.sqlSessionTemplate != null) {
if (explicitFactoryUsed) {
LOGGER.warn(() -> {
return "Cannot use both: sqlSessionTemplate and sqlSessionFactory together. sqlSessionFactory is ignored.";
});
}
definition.getPropertyValues().add("sqlSessionTemplate", this.sqlSessionTemplate);
explicitFactoryUsed = true;
}
if (!explicitFactoryUsed) {
LOGGER.debug(() -> {
return "Enabling autowire by type for MapperFactoryBean with name '" + holder.getBeanName() + "'.";
});
definition.setAutowireMode(2);
}
}
} 偷天换日的关键在于通过definition.setBeanClass(this.mapperFactoryBeanClass);修改bean的定义方式，将原来的接口类改为了实现FactoryBean接口的类，FactoryBean接口的作用是在创建Bean的是通过getObject()方法返回的Bean，在getObject()中调用SqlSession的getMapper方法巧妙的实现了通过mybatis创建代理。
public class MapperFactoryBean<T> extends SqlSessionDaoSupport implements FactoryBean<T> {
}MapperFactoryBean的getObject()方法：
public T getObject() throws Exception {
// 调用getSqlSession的getMapper方法创建代理对象
return this.getSqlSession().getMapper(this.mapperInterface);
}跟进this.getSqlSession().getMapper(this.mapperInterface); 方法：
public <T> T getMapper(Class<T> type) {
return this.configuration.getMapper(type, this);
}public <T> T getMapper(Class<T> type, SqlSession sqlSession) {
return this.mapperRegistry.getMapper(type, sqlSession);
}public <T> T getMapper(Class<T> type, SqlSession sqlSession) {
MapperProxyFactory<T> mapperProxyFactory = (MapperProxyFactory)this.knownMappers.get(type);
if (mapperProxyFactory == null) {
throw new BindingException("Type " + type + " is not known to the MapperRegistry.");
} else {
try {
return mapperProxyFactory.newInstance(sqlSession);
} catch (Exception var5) {
throw new BindingException("Error getting mapper instance. Cause: " + var5, var5);
}
}
}public T newInstance(SqlSession sqlSession) {
MapperProxy<T> mapperProxy = new MapperProxy(sqlSession, this.mapperInterface, this.methodCache);
return this.newInstance(mapperProxy);
}protected T newInstance(MapperProxy<T> mapperProxy) {
return Proxy.newProxyInstance(this.mapperInterface.getClassLoader(), new Class[]{this.mapperInterface}, mapperProxy); // 通过反射的方式创建代理对象。
}
